PALOMAT® FLEXOMATIC

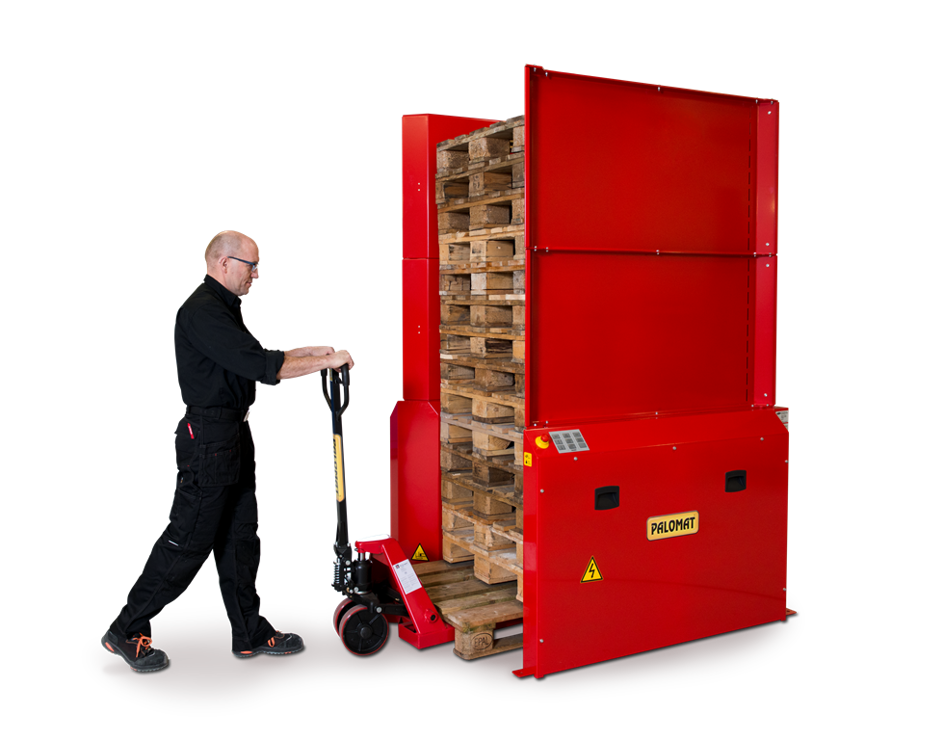

Pallet magazine PALOMAT Flexomatic with safety frame for 15 pallets

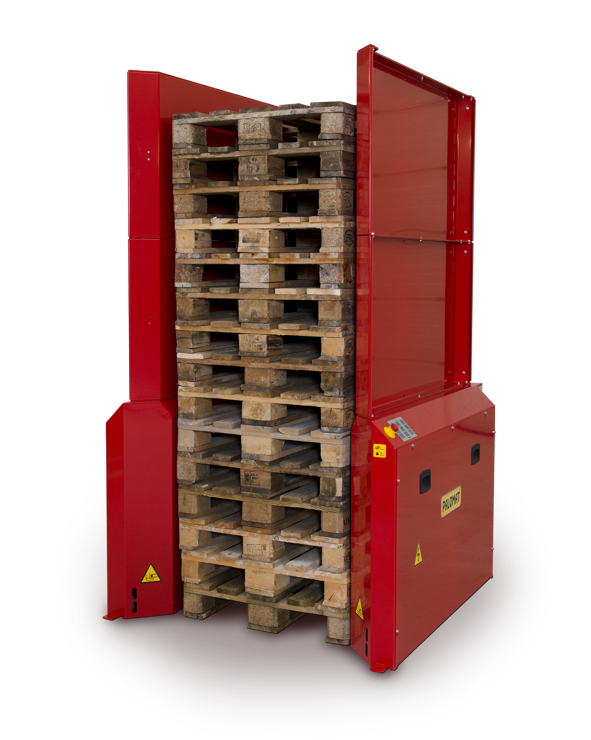

Pallet magazine PALOMAT Flexomatic for 15 pallets

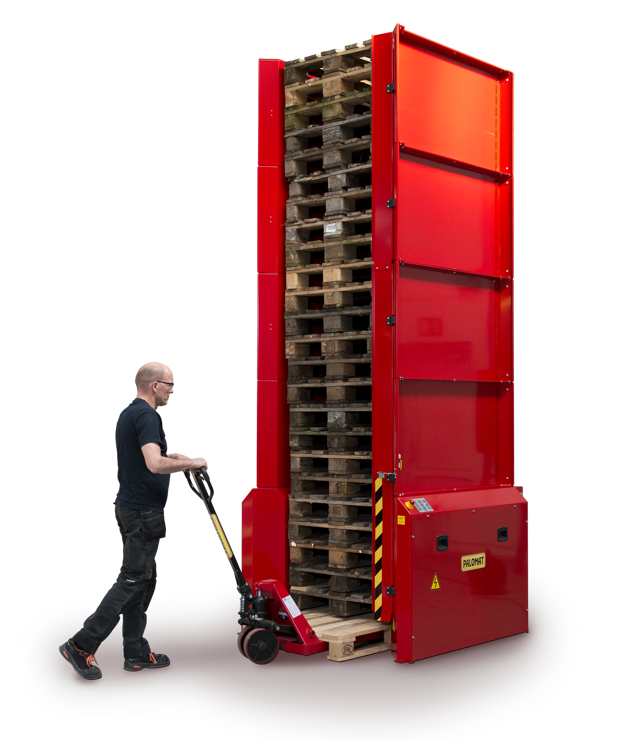

Pallet magazine PALOMAT Flexomatic with safety frame for 25 pallets

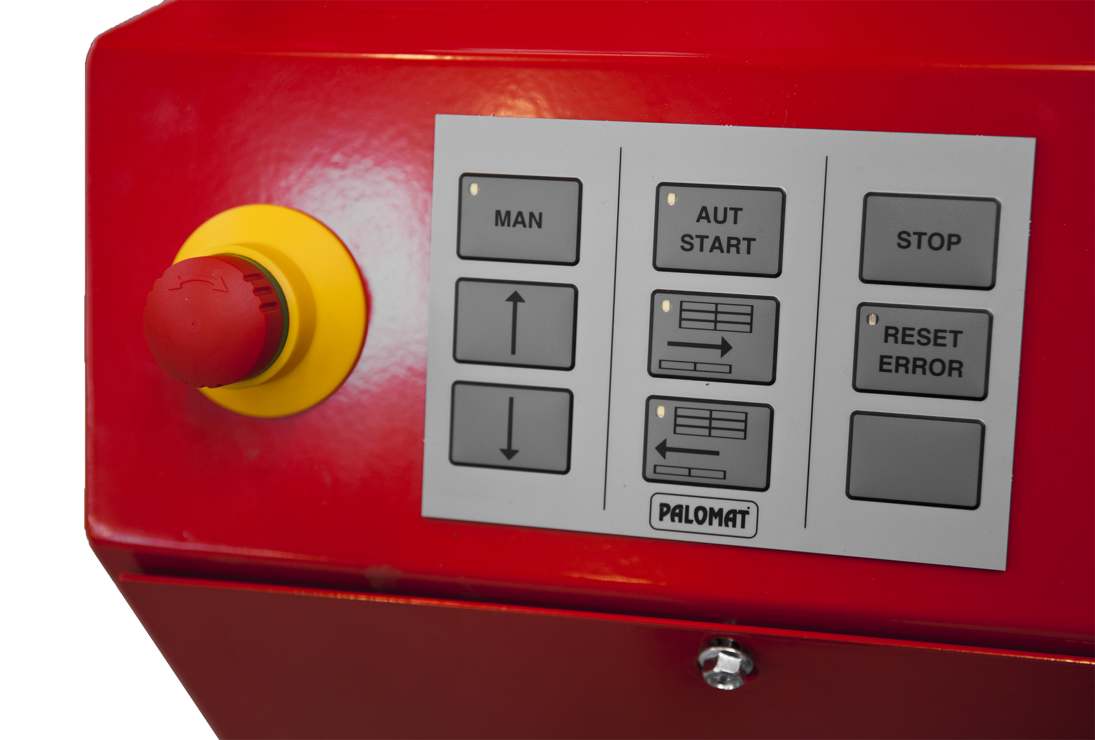

Touch panel on PALOMAT Flexomatic
Se hvordan du bruger en PALOMAT® Flexomatic
Learn about the benefits with PALOMAT®

Stacking and destacking
of 1 pallet

PALOMAT® Flexomatic offers fully automatic stacking and destacking. It operates on compressed air and requires electricity for control of the machine.

Choose a PALOMAT® Flexomatic if you plan to both stack and destack single pallets and wish to use compressed air + electricity as the power source.


CONTACT US FOR MORE INFORMATION

How does the PALOMAT® Flexomatic work?

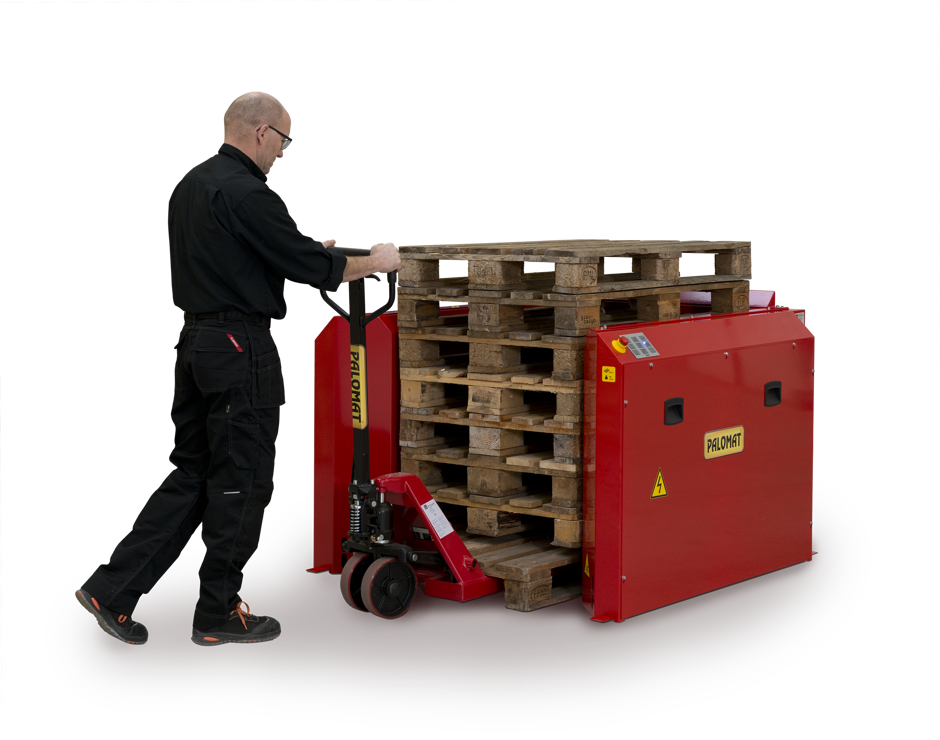

The PALOMAT Flexomatic is designed for automatic pallet stacking and destacking using a touch-panel. The user can insert or remove pallets using a stacking truck or a fork lift truck, all of which can be carried out at floor level. The PALOMAT Flexomatic utilizes photo sensors to detect the pallets, which are then automatically stacked or destacked one by one.

When selecting destacking, the PALOMAT can accommodate a stack of no more than 15 or 25 pallets, and the pallets are automatically destacked one by one. When selecting stacking, the pallets are inserted one by one, and the PALOMAT automatically stacks them to no more than 15 or 25 pallets. The entire stack can be removed once complete.

The touch panel is used only when switching between stacking and destacking, and the PALOMAT Flexomatic can operate automatically beyond that. The pallet magazine/dispenser PALOMAT is a standard pallet magazine that offers a variety of possibilities for different types and sizes of pallets. Customized solutions can also be provided.



Capacity - 500 kg

Energy:

220-240VAC / 50 Hz

Standby Consumption:

23 W

Consumption during operation:

550 W (at max. load of 500 kg)

Noise Level:

70 dB(A)

Max. Fuse:

16A D01

Steering:

Siemens S7-1200


Capacity - 700 kg

Energy:

220-240VAC / 50 Hz

Standby Consumption:

23 W

Consumption during operation:

600 W (at max. load of 700 kg)

Noise Level:

70 dB(A)

Max. Fuse:

16A D01

Steering:

Siemens S7-1200


As the PALOMAT is equipped with various sensors, wires and pipes, cleaning must only be carried out with a weak alkaline cleaning agent. The PALOMAT must not be flushed, but only wiped with a damp cloth.

Contact the PALOMAT sales department or the nearest PALOMAT dealer for further information.



How to install your PALOMAT®

Installing a PALOMAT® without floor mounting

Intallering af PALOMAT



Installing a PALOMAT® with floor mounting

Intallering af PALOMAT

PALOMAT Flexomatic for 15 pallets

Product No. Pallet size (L x B x H) Lifting capacity Number of pallets

150001 1200x800x144 500 kg 15 pallets

150002 1200x1000x150 500 kg 15 pallets

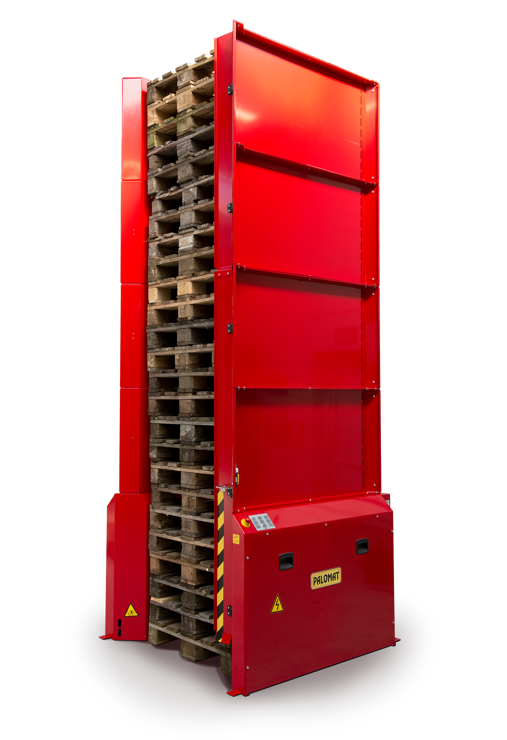

PALOMAT Flexomatic for 20 or 25 pallets

Product No. Pallet size (L x B x H) Lifting capacity    Number of pallets

150101 1200x800x144 800 kg 25 pallets

150102 1200x1000x150 800 kg 25 pallets

150103 1200x1200x150 800 kg about 20 pallets


PALOMAT Flexomatic - in stainless steel

The PALOMAT Flexomatic in stainless steel has completely the same function as a standard PALOMAT Flexomatic pallet magazine/ pallet dispenser. All PALOMAT parts are made in stainless steel and therefore ideal for e.g. wet production areas. It is very well suited to the food processing industry. The PALOMAT can be cleaned with a weak alkaline cleaning agent.

Product No. Pallet size (L x B x H) Lifting capacity Number of pallets

150001-SS 1200x800x150 500 kg 15 pallets

150002-SS 1200x1000x150 500 kg 15 pallets

150101-SS 1200x800x150 800 kg 25 pallets

150102-SS 1200x1000x150 800 kg 25 pallets

150103-SS 1200x1200x150 800 kg 20 pallets


Contact the PALOMAT sales department or the nearest PALOMAT dealer for further information.

For the pallet magazine PALOMAT® Flexomatic we offer the following options:

Option - Sikkerhedsoverbygning til PALOMAT pallemagasin for 15 paller
Safety frame for 15 pallets

A safety frame is not a legal requirement but is recommended - especially if the PALOMAT will stand freely in a room.

It is also possible to obtain a safety frame with a gate.

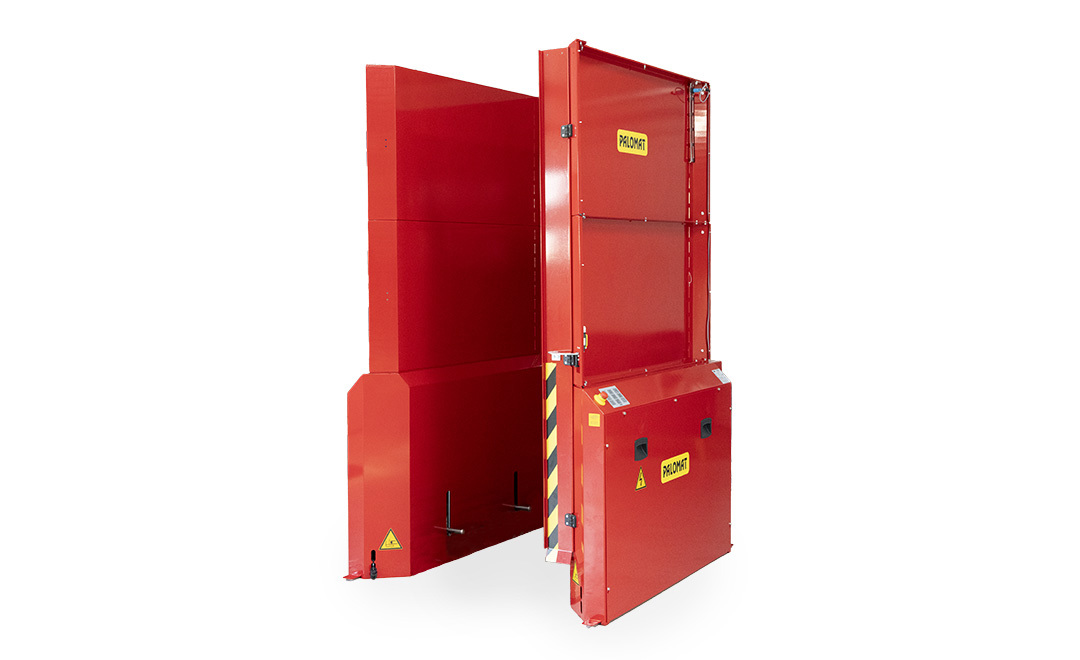

Option - Safety frame with gate for 15 pallets for pallet magazine PALOMAT®
Safety frame with gate for 15 pallets

The gate is a part of the safty frame and is mounted for added safety. The PALOMAT® can only be operated when the gate is closed and locked with the gate safety switch. The gate covers the right front from the top of the second pallet at floor level to the top of the safety frame.

Option - Maximum indicator for pallet magazine PALOMAT
Maximum indicator

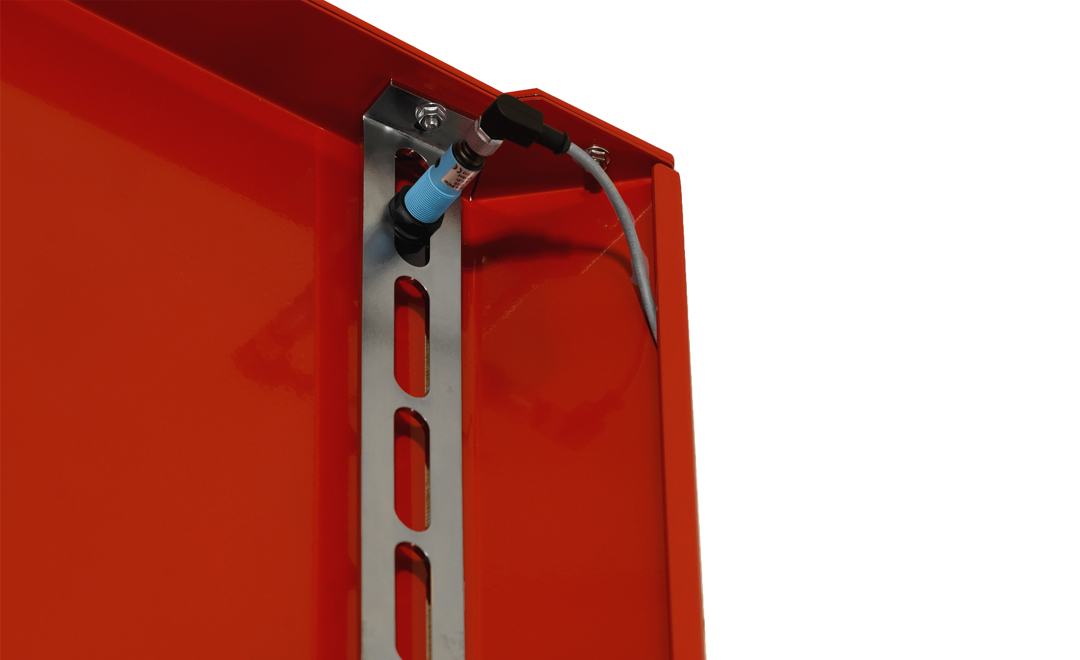

A Sick-sensor for indicating when a pallet stack automatically should be destacked onto the floor.

If the user for examples wants the PALOMAT® to stop at 15 pallets, a maximum indicator can be mounted on the safety frame or on a pole. When the maximum indicator indicates the specified number of pallets, the stack is automatically put on the floor. The stack is then ready for pickup by for example a stacker.

The function can also be done manually using the touch panel.

Option - Signal tower incl. maximum indicator for pallet magazine PALOMAT®
Signal tower incl. maximum indicator

A signal tower with a three-colour LED, to assist the user in operating the machine.

The signal tower includes Sick sensors that detects when the pallet stack is full or empty. If the Palomat needs to stop e. g. at 15 pallets, the signal tower with maximum indicator can be mounted in the safety frame or on a bar. When the maximum indicator is actuated, e. g. at 15 pallets, the lamp lights blue and the stack is automatically put down on the floor.

Option - Truck protection for the pallet magazine PALOMAT
Truck protection (H:300 x W:310)

The truck protection is produced in 10 mm steel and can be offered as an extra protection of the front sensors.

The truck protection is two separate parts, which are mounted into the floor in front of the PALOMAT®. The solution is used especially by companies, which handle pallets by forklifts.



Option - Truck protection for the pallet magazine PALOMAT
Truck protection (H:1.000 x W:250)

The truck protection is produced in 10 mm steel and can be offered as an extra protection of the front sensors.

The truck protection is two separate parts, which are mounted into the floor in front of the PALOMAT®. The solution is used especially by companies, which handle pallets by forklifts.



Option - Truck protection for the pallet magazine PALOMAT
Truck protection (H:300 x W:250)

The truck protection is produced in 10 mm steel and can be offered as an extra protection of the front sensors.

The truck protection is two separate parts, which are mounted into the floor in front of the PALOMAT®. The solution is used especially by companies, which handle pallets by forklifts.



Option - Stopblocks for the pallet magazine PALOMAT®
Stopblocks

The stop blocks are a perfect option when the PALOMAT® needs to handle pallets where the runners at the bottom are crosswise to the hand pallet truck. When pulling out the hand pallet truck from the PALOMAT®, the two stop blocks hold the pallet in place, keeping it in the magazine.

The stop blocks are installed at the front of the PALOMAT®, one on each side next to the front sensors.

Option - Switch disconnector for the pallet magazine PALOMAT
Switch disconnector

The switch disconnector enables disconnection from the main supply right on the machine. The switch disconnector can be locked, e.g. when servicing the machine.

This is an advantage and a safety feature for maintenance of the PALOMAT® unit. The switch disconnector is positioned under the main supply.

Option - Shut Of Valve for PALOMAT® pallet magazine

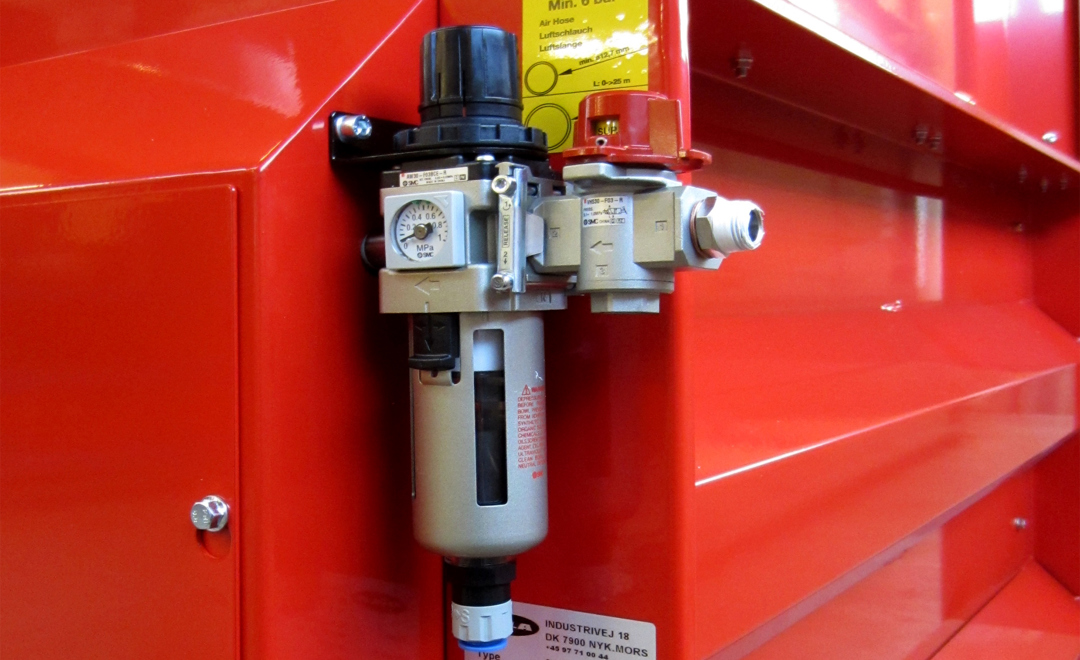

Shut Of Valve

The shut off valve enables disconnection from the air supply right on the machine. The shut off valve can be locked, e.g. when servicing the machine.

This is an advantage and a safety feature for maintenance of the PALOMAT® unit. The shut of valve is installed directly on the filter regulator.

Option - Shut Of Valve for PALOMAT® pallet magazine

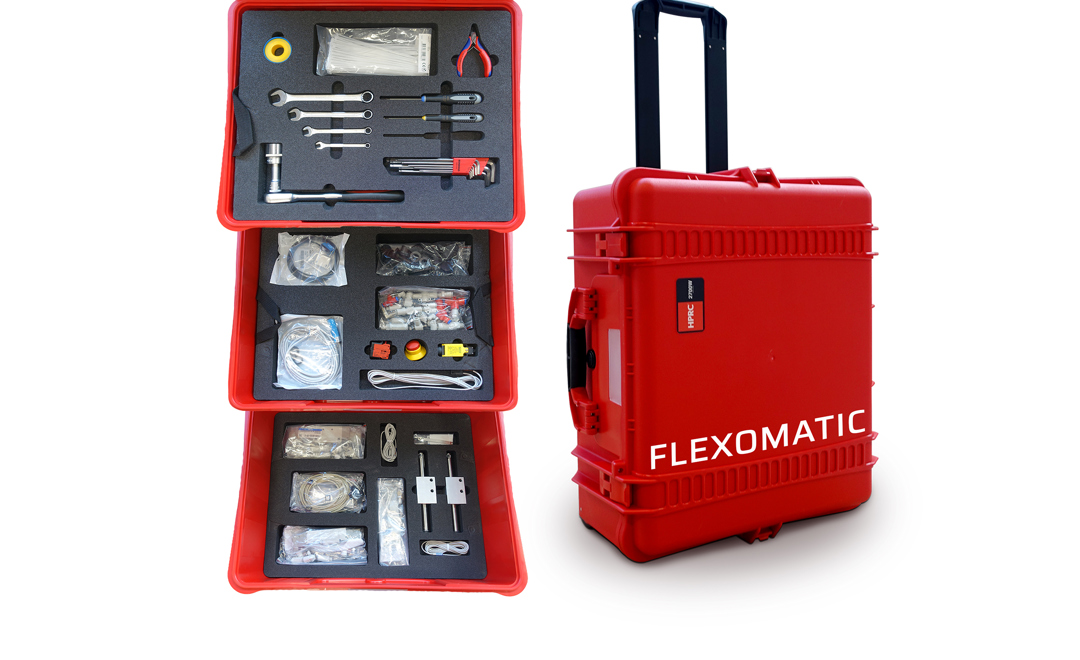

Flexomatic Service Kit

Our service kit contain the necessary spare parts + tools, for PALOMAT® Flexomatic. In here, you always have the most important spare parts gathered in one place.
