PALOMAT® ½ Pallets

PALOMAT® ½ Pallets automatically stack and destack empty ½-pallets.

You should choose PALOMAT® ½ Pallets if you need to both stack and destack one pallet at a time. PALOMAT® ½ Pallets are available in two variants: a 100% electric-powered version and an air + electric version.

AC operated
Plug´n´Play

Air and AC operated

Handels

1 pallet at a time

Lifting capacity
15 paller/500kg

How PALOMAT® ½ Pallets works

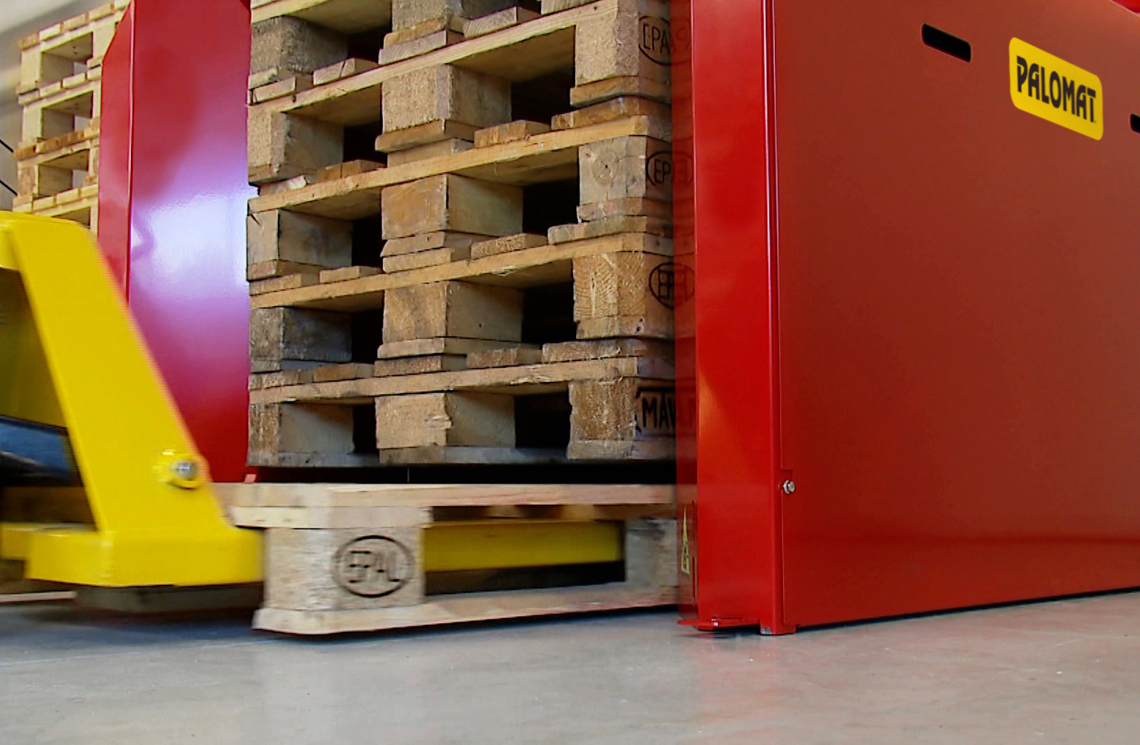

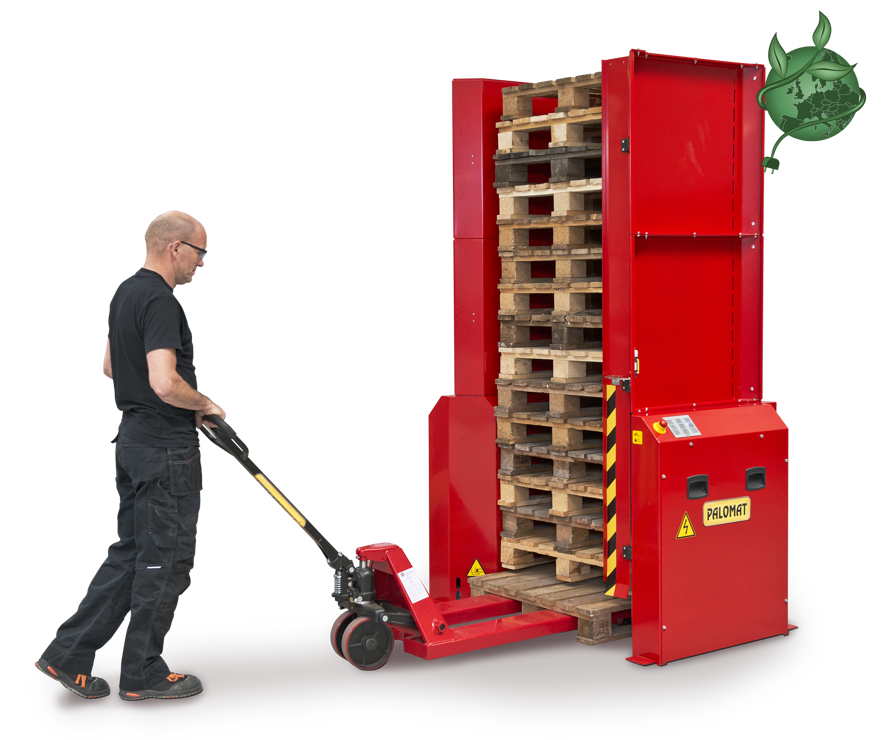

PALOMAT® ½ Pallets automatically stack and destack empty ½-pallets. You can insert or remove pallets using a hand pallet truck, electric stacker, or full-size forklift truck, and all handling is done at floor level. It detects the ½-pallets via photo sensors, and then automatically stacks or destacks them one by one.



  • If you select destacking, the machine will insert a stack of no more than 15 ½-pallets, and then automatically destack each pallet one by one
  • If you select stacking, the ½-pallets will be inserted one by one, and then the PALOMAT will automatically stack them to a maximum of 15 pallets. The entire stack can then be removed
  • PALOMAT® ½ Pallets operates fully automatically. It is ONLY manually operated via a touch panel when switching between stacking and destacking or vice versa
  • PALOMAT® ½ Pallets is available in both Greenline (AC operated) and Flexomatic (air + AC operated) versions



It can handle all 4-way pallets made of wood, plastic, and metal, regardless of size. We can customise the PALOMAT ½ Pallets to match the exact size of the pallets you use.



Contact us today


Specifications

  •

    PALOMAT® ½ Pallets 15 pallets
    (Air + AC Flexomatic version)
    Capacity 500 kg
    Air supply 6-7 bar
    Consumption 36 litres per cycle
    Power source 100-240V AC / 50-60 Hz
    Standby Consumption 16 W
    Consumption during operation 20 W
    Noise Level 70db(A)
    Max. Fuse 16A D01
    Air components SMC
    Steering Siemens S7-1200


    PALOMAT® ½ Pallets 15 pallets
    (AC operated Greenline version)
    Capacity 500 kg
    Energy 220-240V AC / 50 Hz
    Standby Consumption 23 W
    Consumption during operation 550 W (at max. load of 500 kg)
    Noise Level 70 dB(A)
    Max. Fuse 16A D01
    Steering Siemens S7-1200





    Standard colours:

    RAL 3002 red, RAL 5002 blue, RAL 7032 grey and RAL 7035 grey.



    As the PALOMAT is equipped with various sensors, wires and pipes, cleaning must only be carried out with a weak alkaline cleaning agent. The PALOMAT must not be flushed, but only wiped with a damp cloth.

  • PALOMAT® ½ Pallets for 15 ½-pallets



    Article no. Pallet size Lifting capacity Number of pallets
    150050* 600x800x144 500 kg 15 ½ pallets
    152050** 600x800x144 500 kg 15 ½ pallets



    * Flexomatic version: Air + AC operated
    ** Greenline version: AC operated



    Incl. safety frame for 15 pallet with gate.



Possible options for your PALOMAT® ½ Pallets

Truck protection (H:300 x W:310)

The truck protection is produced in 10 mm steel and can be offered as an extra protection of the front sensors.

The truck protection is two separate parts, which are mounted into the floor in front of the PALOMAT®. The solution is used especially by companies, which handle pallets by forklifts.

Truck protection (H:1.000 x W:250)

The truck protection is produced in 10 mm steel and can be offered as an extra protection of the front sensors.

The truck protection is two separate parts, which are mounted into the floor in front of the PALOMAT®. The solution is used especially by companies, which handle pallets by forklifts.

Truck protection (H:300 x W:250)

The truck protection is produced in 10 mm steel and can be offered as an extra protection of the front sensors.

The truck protection is two separate parts, which are mounted into the floor in front of the PALOMAT®. The solution is used especially by companies, which handle pallets by forklifts.

Maximum indicator

A Sick-sensor for indicating when a pallet stack automatically should be destacked onto the floor.

If the user for examples wants the PALOMAT® to stop at 15 pallets, a maximum indicator can be mounted on the safety frame or on a pole. When the maximum indicator indicates the specified number of pallets, the stack is automatically put on the floor. The stack is then ready for pickup by for example a stacker. The function can also be done manually using the touch panel.



Signal tower incl. maximum indicator

A signal tower with a three-colour LED, to assist the user in operating the machine. The signal tower includes Sick sen­sors that detects when the pallet stack is full or empty. If the Palomat needs to stop e. g. at 15 pallets, the signal tower with maximum indicator can be mounted in the safety frame or on a bar. When the maximum indicator is actuated, e. g. at 15 pallets, the lamp lights blue and the stack is automatically put down on the floor.

Stopblocks

The stop blocks are a perfect option when the PALOMAT® needs to handle pallets where the runners at the bottom are crosswise to the hand pallet truck. When pulling out the hand pallet truck from the PALOMAT®, the two stop blocks hold the pallet in place, keeping it in the magazine.

The stop blocks are installed at the front of the PALOMAT®, one on each side next to the front sensors.

Switch disconnector

The switch disconnector enables disconnection from the main supply right on the machine. The switch disconnector can be locked, e.g. when servicing the machine.

This is an advantage and a safety feature for maintenance of the PALOMAT® unit. The switch disconnector is positioned under the main supply.

.

Shut Of Valve

The shut off valve enables disconnection from the air supply right on the machine. The shut off valve can be locked, e.g. when servicing the machine.

This is an advantage and a safety feature for maintenance of the PALOMAT® unit. The shut of valve is installed directly on the filter regulator.

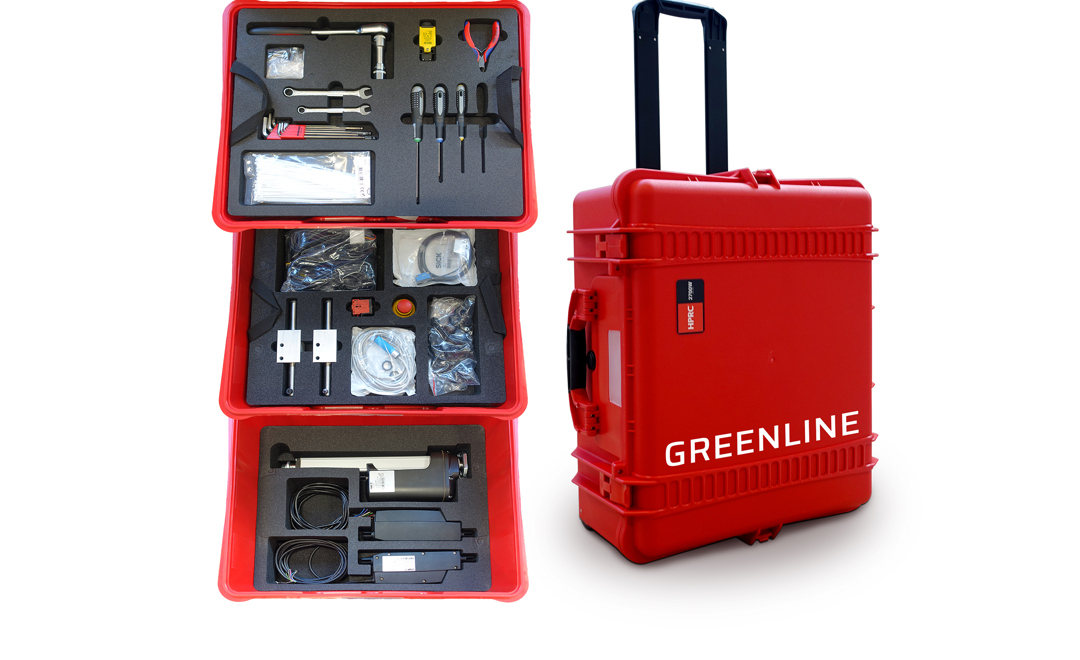

Greenline Service Kit

Our service kit contain the necessary spare parts + tools, for PALOMAT® Greenline. In here, you always have the most important spare parts gathered in one place.

Prepared for information via SMS/E-mail

An interface sends an e-mail or SMS to the responsible for the PALOMAT®, e.g. when the magasin is empty or when there is an error with the PALOMAT®. It is installed with a mobile data sim-card (delivered by the customer) or a patchcabel, which is connected to the company’s network.
