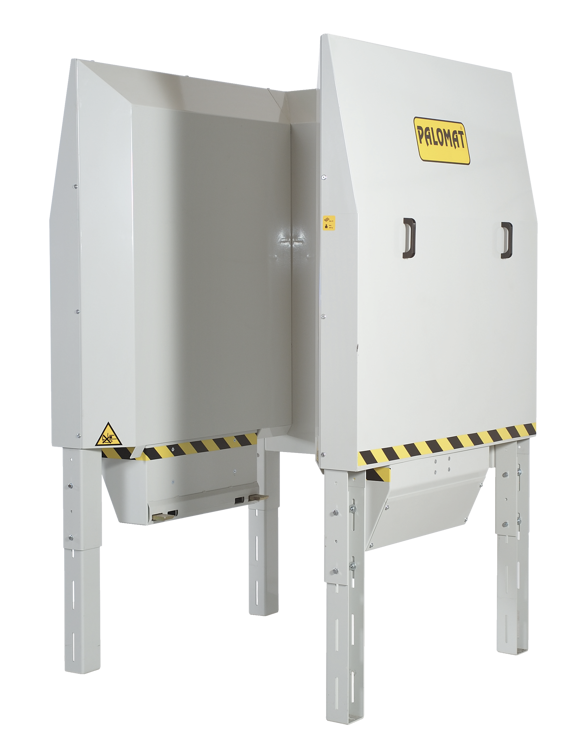

PALOMAT® Inline Pneumatic
The PALOMAT® Inline Pneumatic is the ideal component for automatically stacking and destacking empty pallets in automated production lines. Outsource the design and production of your pallet dispenser to PALOMAT® and save valuable time and costs while minimising project risk with a proven solution for your palletising projects.
100% customised to your project
You save time on development, design, and production
Flexible and thoroughly tested product
Over 30 years of experience
Why choose PALOMAT® Inline Pneumatic?
PALOMAT® Inline Pneumatic is an automatic pallet dispenser designed for stacking and destacking empty pallets in production lines where compressed air is used to power automated systems.
- 100% customised to your project – regardless of conveyor type, 4-way pallet type or pallet direction
- Equipped with a terminal box for external control
- Complies with the current Machinery Directive
- Easily integrated into the complete system
With PALOMAT® Inline Pneumatic, you get an efficient, reliable and economical solution that supports a more efficient production line and improves your project’s bottom line. Take the next step towards automated pallet handling and outsource your next pallet dispenser to PALOMAT®.
A win for your business
- Save time on development, design, and production
- Save time on commissioning and testing – and preparing documentation
- 100% customised to your pallet and your palletising project
- Minimise the risk of errors and omissions. You get a complete, flexible, and proven standard product
- Easy to integrate into a complete system
- Prepared for PLC – supplied with a terminal box for external control
- You will receive drawings of the PALOMAT® for your own layout (DWG/STEP)
- You receive technical documentation in your customers' languages
- A quality product at a competitive price
- Technical hotline support, with more than 30 years of experience
Specifications
-
PALOMAT® Inline Pneumatic
Electrical data Type Funktion Psc. I/O Power Consumption Power Consumption per unit Sick - VTE18-3F4712 Photoelectric sensor 2 2 input 30mA - 0,72W 60mA - 1,44W Smc - D-A93L Reed switch(Top and bottom) - Lifting cylinder (2x2 in serie) 4 2 input 20mA - 0,48W 80mA - 1,92W Smc - D-A93L Reed switch (Middle) - Lifting cylinder 2 2 input 20mA - 0,48W 40mA - 0,96W Smc - D-C73L Reed switch - Gripping cylinder (2x2 in serie) 4 2 input 20mA - 0,48W 80mA - 1,92W Smc - Solenoid Solenoid for lifting 4 4 input 17mA - 0,40W 67mA - 0,80W Smc - Solenoid Solenoid for gripping 2 2 input 17mA - 0,40W 34mA - 0,80W Max power consumption at 24V DC: 361mA - 8,66W
Pneumatic data Air quality:
Compressed air quality after ISO 8573-1 (3.4.3) Class
Particles
Max. µm
Particles
Max. mg/m3
Water Content
PDP ℃*
Water Content
g/m3**
Residal Oil
mg/m3
1 0,1 0,1 -70 0,003 0,01 2 1 1 -40 0,15 0,1 3 5 5 -20 0,88 1 4 15 8 +3 6 5 5 40 10 +7 7,8 25 6 +10 9,4 *PDP = Pressure Dew Point = the temperature below which the compressed air is to be cooled before its harmful water vapour content will condense and be transformed into a liquid and harmful form.
** m³ compressed airAir consumption for one pneumatic PALOMAT® Inline unit:
Working pressure: 6-7 bar
Minimum air flow: 55L/cycleCycle time:
For stacking and destacking a pallet: 15 sekunder
Lifting capacity:
500 kg
IP Class= 64 -
-
PALOMAT® Inline videos

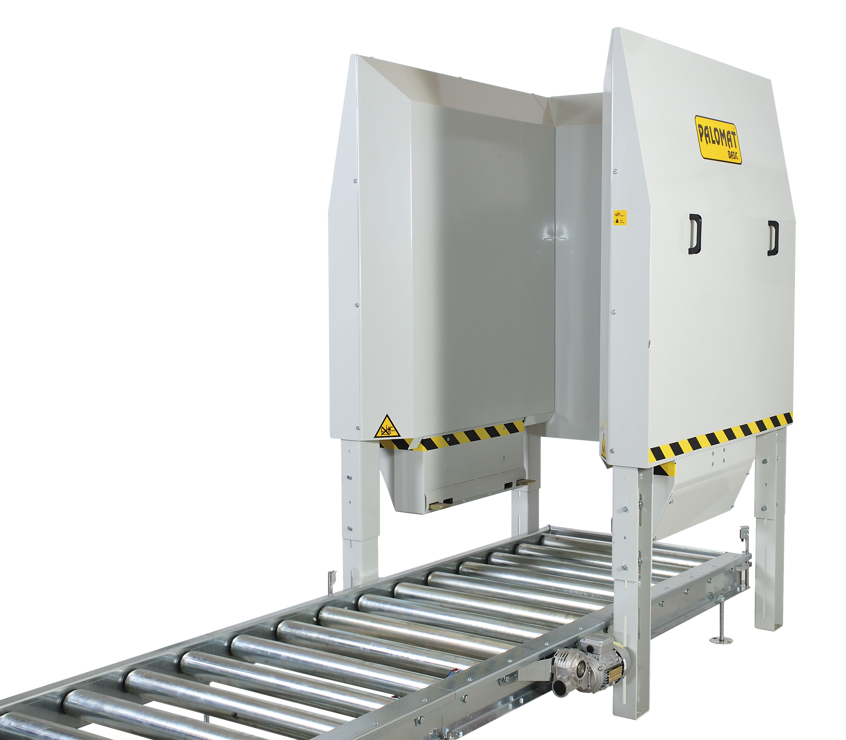

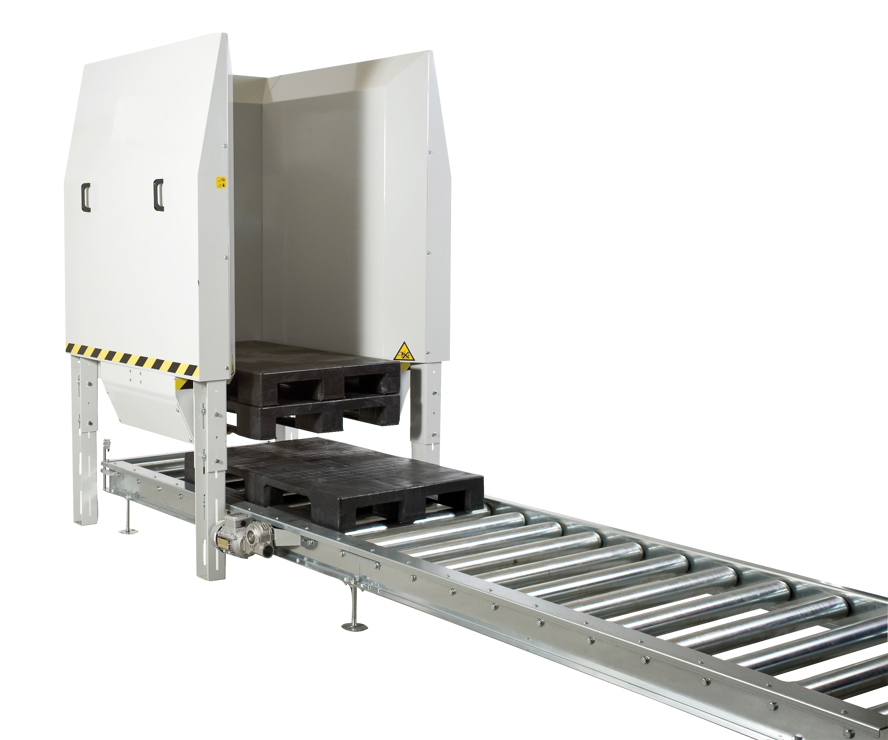

Pictures of PALOMAT® Inline
Automatic pallet dispensers in various models and production lines
