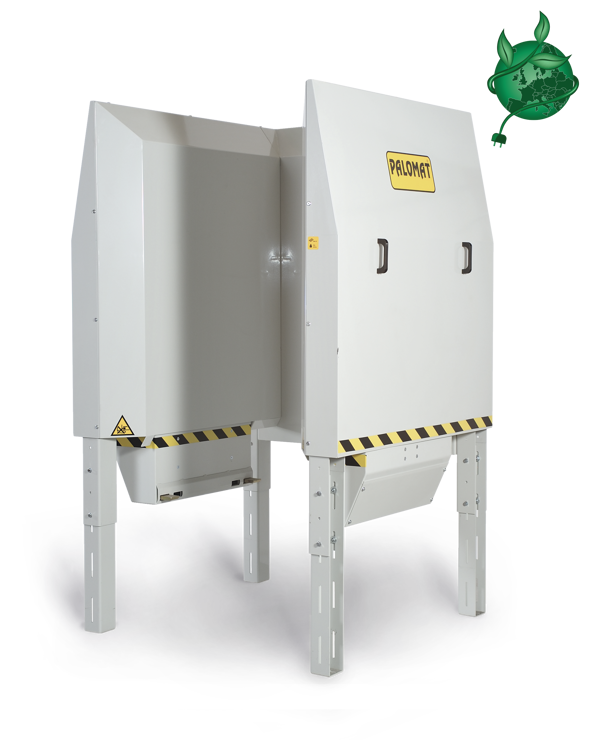

PALOMAT® Inline Electric
The PALOMAT® Inline Electric automatically stacks and destacks empty pallets in automated production lines. Outsource your pallet dispenser to PALOMAT® to save time, reduce costs and optimise your workflow with a user-friendly, flexible and energy-efficient solution.
100% customised to your project
You save time on development, design, and production
100% electric
Flexible and thoroughly tested product
Why choose PALOMAT® Inline Electric?
PALOMAT® Inline Electric is an automatic pallet dispenser that connects easily to a standard industrial power outlet, giving you greater flexibility when positioning it in your facility. Its low energy consumption provides an energy-efficient solution with reduced operating costs.
- 100% customised to your project – regardless of conveyor type, 4-way pallet type or pallet direction
-
Plugin solution – easy to implement in facilities of any size
- Greener, energy-efficient operation
- Future-ready – flexible and prepared to meet future production needs
- Low maintenance – the electrical components require minimal servicing and operational monitoring
- Equipped with a terminal box for external control
- Complies with the current Machinery Directive
With PALOMAT® Inline Electric, you get an efficient, reliable and economical solution that helps optimise your production line and improve your project’s bottom line. Take the next step towards automated pallet handling and outsource your next pallet dispenser to PALOMAT®.
Specifications
-
PALOMAT® Inline Electric
Electric data Type Funktion Psc. I/O Power Consumption Power Consumption per unit SEW Eurodrive DRN63M2
Lifting motor 2 Use frequency converter/VFD 1,1A - 0,25kW 2,2A - 0,5kW LINAK LA28 Gripper actuators - Activation signal 2 4 output 4A - 96W 8A - 192W LINAK LA28 Gripper actuators - Feedback signal 4 4 input SICK IME18-08BPSZC0S Inductive proximity sensors 6 6 input 20mA - 0,48W 120mA - 2,88W SICK VTE18-3F4712 Photoelectric sensors 2 2 input 30mA - 0,72W 60mA - 1,44W Max power consumption for lifting motors at 380VAC/3P: 2,2A - 0,5kW
Max power consumption for gripper actuators at 24V DC:
Max power consumption for sensors at 24V DC: 180mA - 4,32W
Liftingkapacitet:
500 kg
-
-

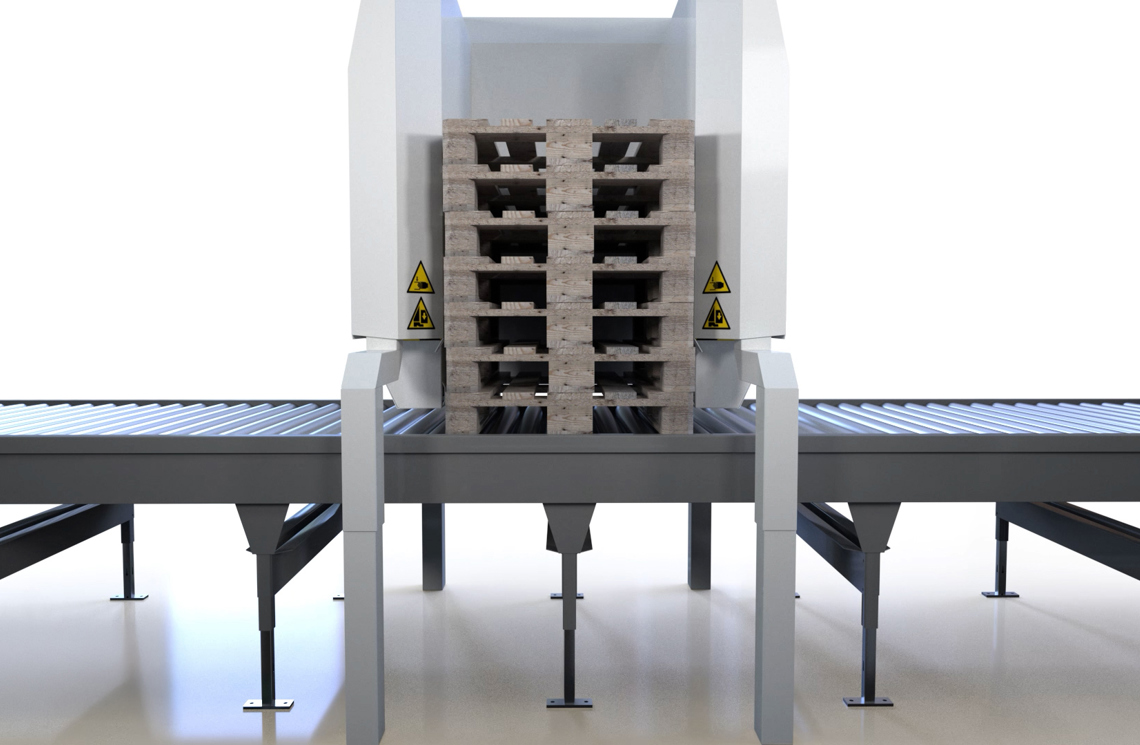

PALOMAT® Inline videos

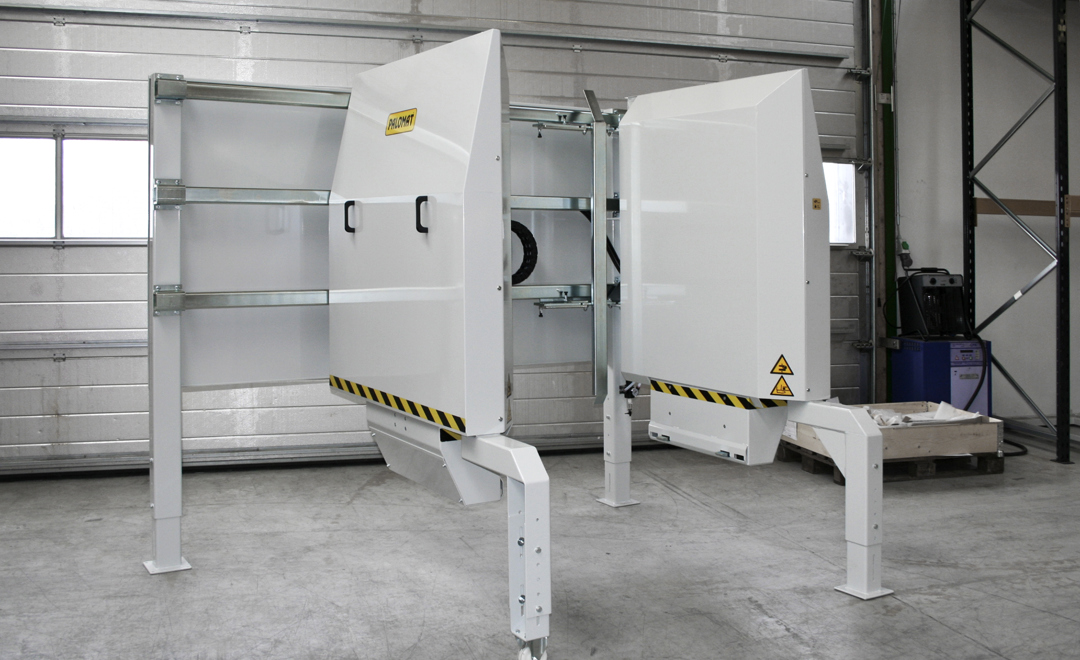

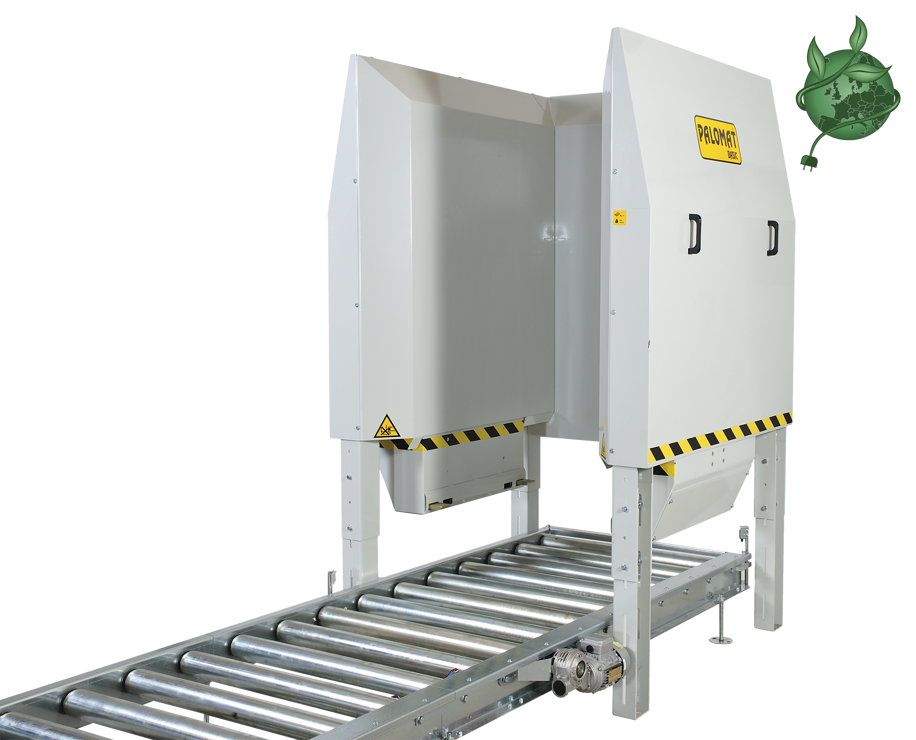

Pictures of PALOMAT® Inline

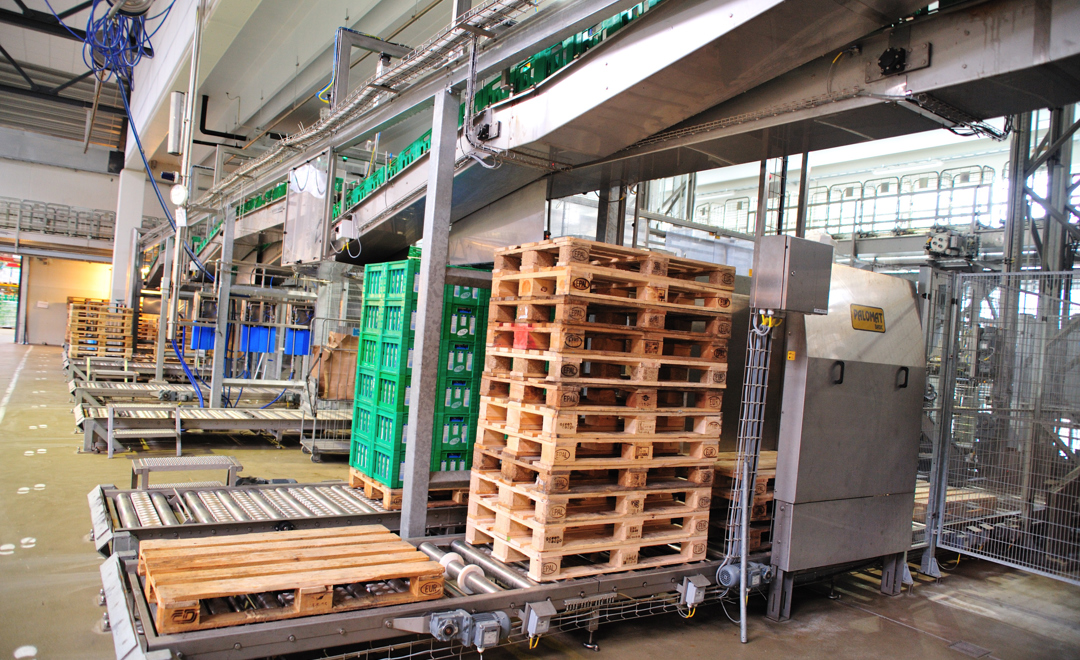

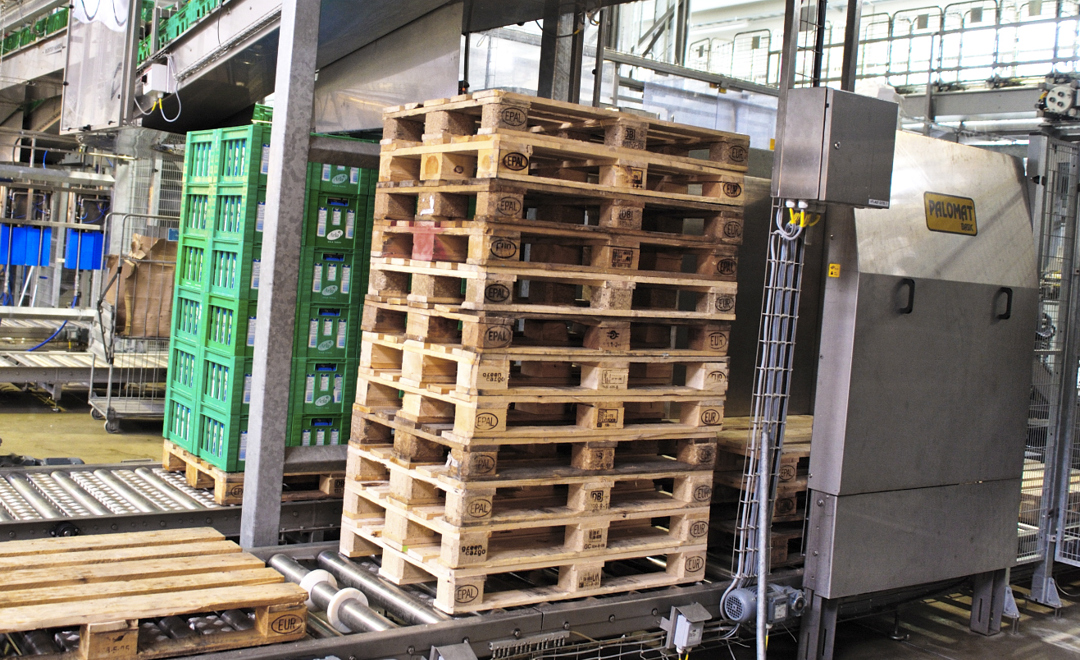

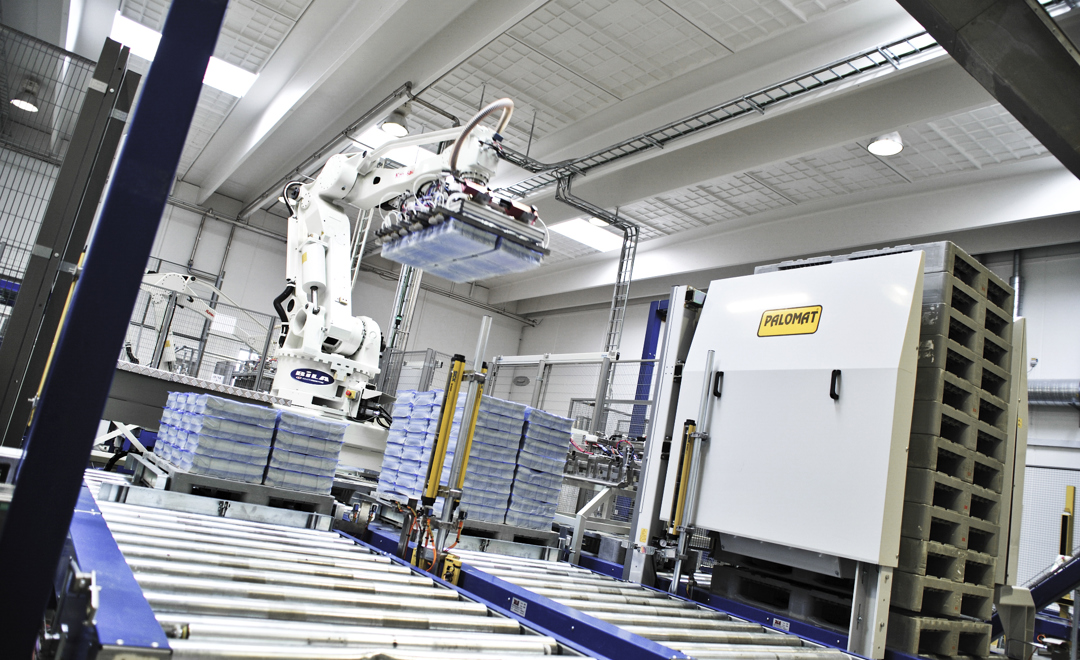

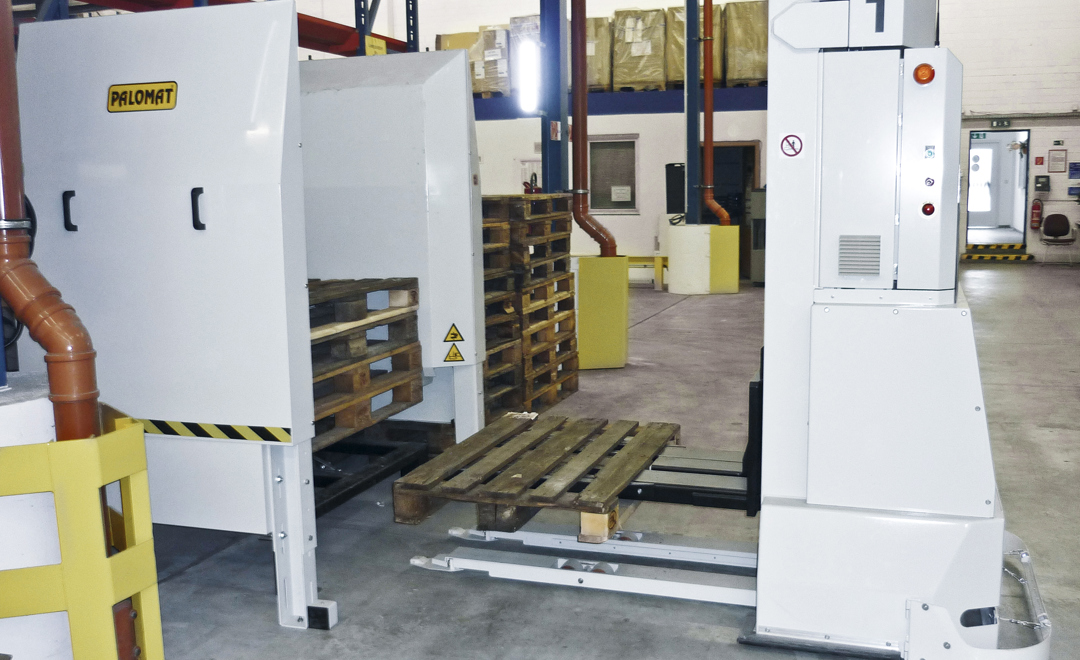

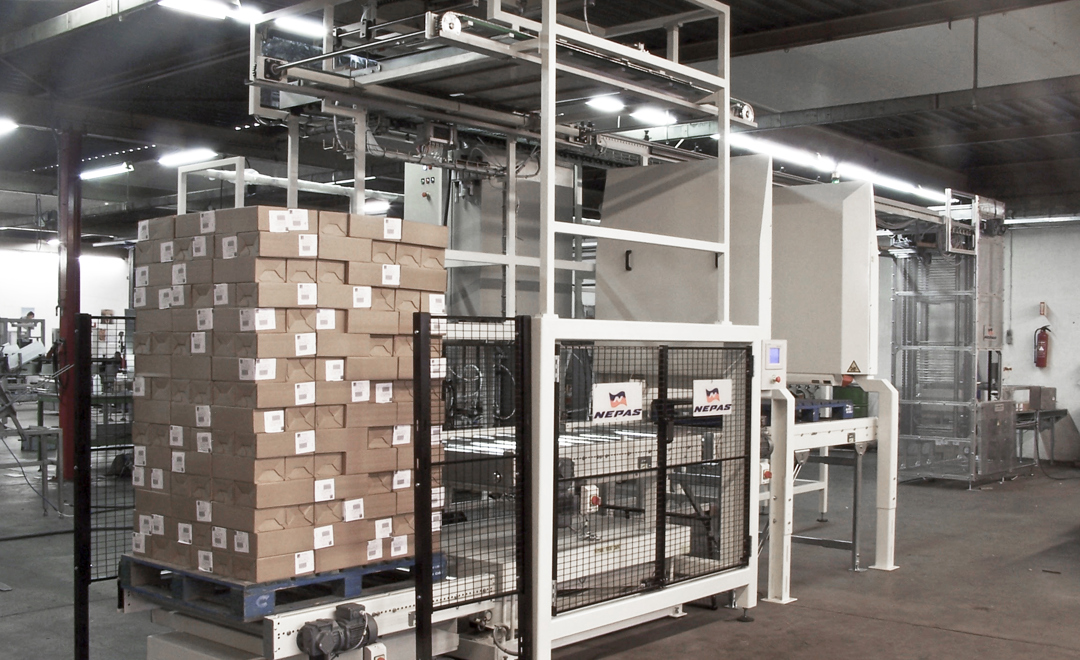

Automatic pallet dispensers in various models and production lines
Get direct access to our PALOMAT® Inline Electric presentation
Fill out the form and learn when PALOMAT® Inline Electric is the right solution for your pallet handling project – and what benefits a 100% electric PALOMAT® can bring to your business.
