Pallet handling in cooperation with KUKA

PALOMAT® AMR for KUKA

Safe and simple pallet handling with PALOMAT® AMR for KUKA

Lift your workflow to an even higher level by allowing PALOMAT® AMR and KUKA's mobile robots to work together and release manpower for other valuable tasks.

Request quote

AC operated

Collaborates with KMP600p and KMP1500p

Lifting Capacity
15 pallets/500 kg

24/7-365

Technical support

How PALOMAT® AMR for KUKA works

In collaboration with KUKA, we have made it possible for you to optimise your internal logistics and workflow. Lift your workflow to an even higher level by allowing PALOMAT® AMR and the KUKA mobile robot to work together and release manpower for other valuable tasks. With the help of an integrated interface, PALOMAT® AMR and the KUKA mobile robots can work safely together, on their own, between your employees

PALOMAT® AMR can collaborate with the KMP600p and KMP1500p models, which are innovative Automated Mobile Robots that communicate via internal signal exchange

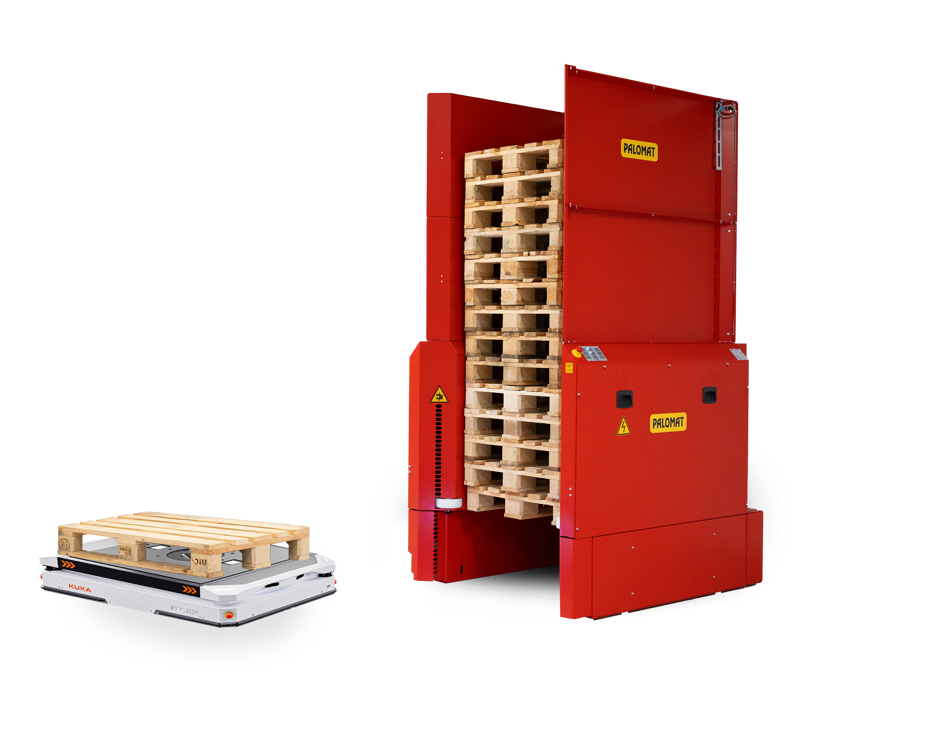

The pallet magazine automatically stacks and destacks the pallets on the KUKA robot, and serves as a pallet buffer and docking station that is always automatically running
This allows you to create an internal logistics that is completely automated and secure

PALOMAT® AMR, like the KUKA mobile robot, is designed to fit into all industries, and together they ensure safe and simple pallet handling in production and inventory. With this strong and flexible collaboration, you are guaranteed a future-proof investment with PALOMAT® AMR.

Why choose PALOMAT® AMR for KUKA

Improves KUKA workflow by automating pallet handling
Ensures uniform and consistent stacking/destacking on KUKA mobile robots and functions as a fully automatic pallet buffer and docking station
Plug n' Play ensures an easy installation that can be connected to the KUKA mobile robot
100% electrically powered and connected from a 230V plug

Get an offer

Saves time and releases manpower for other value-adding tasks
Creates a better and safer work environment without manual pallet lifting
STEP/DWG drawings ready to be implemented in your layout
Easy installation with 24/7-365 technical support

PALOMAT® AMR for KUKA mobile robots - 15 pallets

Capacity	500 kg
Energy	220-240VAC / 50 Hz
Standby Consumption	23 W
Consumption during operation	550 W (at max. load of 500 kg)
Noise Level	70db(A)
Max. Fuse	16A D01
Actuator	Linak
Steering	Siemens S7-1200
Control	EL/H55-H01-S01
Software PLC	U55-S01

Includes:

Safety frame for 15 EUR-pallets / 500 kg

Maximum indicator for 15 EUR-pallets

Technical documentation

Example sequence diagram for programming

PALOMAT® AMR is delivered with an interface 24VDC I/O signals for external equipment, making it possible to exchange signals between the PALOMAT® and mobile robot.

Not included:

To integrate the PALOMAT® AMR into the KUKA system,an interface kit from KUKA is required. With the kit mounted the KUKA system can communicate with the PALOMAT® and thereby fully automating the process of stacking or destacking empty pallets. A 3D camera is supplied as part of the interface kit to increase safety and ensure that full pallets are prevented to enter the PALOMAT® AMR.

As the PALOMAT® is equipped with various sensors, wires and pipes, cleaning must only be carried out with a weak alkaline cleaning agent. The PALOMAT® must not be flushed, but only wiped with a damp cloth.

Interface specifications PALOMAT® AMR for KUKA

Outputs: [continuous signal]

Signal – PALOMAT® empty(destacking)

Signal – New pallet ready to be picked up

Signal – PALOMAT® full(stacking)

Signal – PALOMAT® ready for pallet

Signal – Fail.

Inputs: [puls 3-4 sek.]

Signal – Choose destacking

Signal – Choose stacking

Signal – Emptying the PALOMAT® (full stack)

The PALOMAT® AMR is delivered with a software – a complete program in the PLC – communicating with the interface. Thus being prepared to communicate with the KUKA mobile robot.
PALOMAT® AMR for KUKA mobile robots

Article No. Pallet size Lifting capacity Numbers of pallets

152820 1200x800x144 500 kg 15 pallets

Standard colour: RAL3002 red.

Possible options for your PALOMAT® AMR for KUKA

Signal tower incl. maximum indicator

A signal tower with a three-colour LED, to assist the user in operating the machine. The signal tower includes Sick sensors that detects when the pallet stack is full or empty. If the Palomat needs to stop e. g. at 15 pallets, the signal tower with maximum indicator can be mounted in the safety frame or on a bar. When the maximum indicator is actuated, e. g. at 15 pallets, the lamp lights blue and the stack is automatically put down on the floor.

Switch disconnector

The switch disconnector enables disconnection from the main supply right on the machine. The switch disconnector can be locked, e.g. when servicing the machine.

This is an advantage and a safety feature for maintenance of the PALOMAT® unit. The switch disconnector is positioned under the main supply.
