PALOMAT® AMR
Looking for a pallet AMR solution?

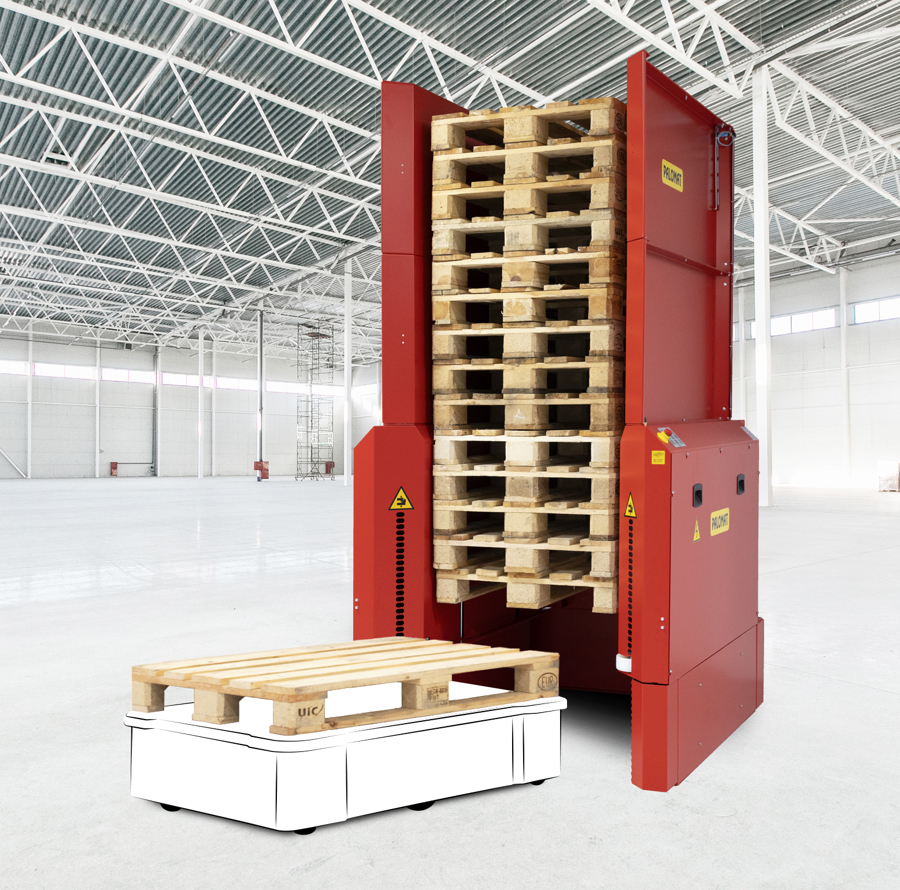

PALOMAT® AMR automatically stacks and destacks empty pallets to and from your mobile robot, eliminating the need for manual pallet handling. Acting as both a pallet buffer and docking station, it helps create a consistent and efficient pallet flow throughout your internal logistics.
- If you are looking to future-proof your business PALOMAT® AMR is designed for you
- You can elevate your internal logistics while minimising the need for manual pallet handling
- You get a healthier work environment, a streamlined pallet flow and increased efficiency
AC operated
Collaborates with
mobile robots
Lifting Capacity
15 pallets/500 kg
24/7-365
Technical support
PALOMAT® AMR works intelligently with mobile robots to automatically stack and destack empty pallets. The PALOMAT® AMR places pallets onto the mobile robot and receives empty pallets back – creating an automated pallet flow while freeing up the manpower previously used for manual pallet handling.
For companies using pallet AMR in their intralogistics, PALOMAT® AMR provides a future-proof solution that streamlines workflows across industries.
We design your PALOMAT® AMR to your mobile robot, giving you a 100% customised solution.
We work closely with leading mobile robot manufacturers to develop PALOMAT® solutions that integrate seamlessly with your setup. Interested? Explore our partnerships below.
Why you should choose PALOMAT® AMR
- Saves time and releases manpower for other value-adding tasks
- Improves the workflow of any moobile robot with automatic pallet handling
- Ensures constant and effective stacking/destacking of the mobile robot
- Acts as a fully automatic pallet buffer and docking station
- Streamlines internal logistics with an efficient pallet flow
- Improves the work environment through safe cooperation with humans and other machines
- Eliminates manual pallet handling
- Easy installation and electrically powered from a 230V plug
- Easy to connect with any mobil robot and ready for communication with interface
Specifications
-
Capacity
500 kg Energy 220-240VAC / 50 Hz Standby Consumption 23 W Consumption during operation 550 W (at max. load of 500 kg) Noise Level 70db(A) Max fuse 16A D01 Actuator Linak Steering Siemens S7-1200 Control EL/H55-H01-S01 Software PLC U55-S01 -
- Safety frame for 15 pallets
- Maximum indicator for 15 paller
- Technical documentation
The PALOMAT® AMR is delivered with a software – a complete program in the PLC – communicating with the interface.
PALOMAT® AMR is delivered with an interface 24VDC I/O signals for external equipment, making it possible to exchange signals between the PALOMAT® and the mobile robot.
-
PALOMAT® AMR - OPC UA
Outputs: [continuous signal]
Signal – PALOMAT® empty(destacking)
Signal – New pallet ready to be picked up
Signal – PALOMAT® full(stacking)
Signal – PALOMAT® ready for pallet
Signal – Fail
Inputs: [puls 3-4 sek.]
Signal – Choose destacking
Signal – Choose stacking
Signal – Emptying the PALOMAT® (full stack)
-
Article No.
Pallet size Lifting capacity 152921* 1200x800x144 500 kg 152923* 1200x1200x144 500 kg 152824* 1219x1016x141 500 kg * Incl. safety frame for 15 pallets and maximum indicator.
All models can handle up to 15 pallets.
The PALOMAT® must not be flushed, but only wiped with a damp cloth using a weak alkaline cleaning agent.
-
Get direct access to our PALOMAT® AMR 2.0 presentation
Fill out this form to receive a link to the webinar directly in your inbox. Learn why PALOMAT® AMR 2.0 is the perfect add-on for your mobile robots.
PALOMAT® AMR Partners
Frequently asked questions about PALOMAT® AMR
-
PALOMAT® AMR is an automatic pallet magazine designed to work with autonomous mobile robots (AMRs).
The solution functions as both a pallet buffer and docking station, automatically stacking and destacking empty pallets directly onto the AMR. This ensures a stable and automated pallet flow, frees up employee resources and creates the best conditions for efficient AMR operation.
Considering a pallet AMR solution to automate your pallet handling?
- and we’ll show you how PALOMAT® AMR can become part of your pallet flow. -
PALOMAT® AMR communicates with the mobile robot and automates the stacking and destacking of empty pallets. The solution functions as a pallet buffer and docking station, ensuring that the AMR always has access to the next pallet.
- to see how PALOMAT® AMR automates pallet handling and optimises the interaction with mobile robots.
-
Yes.
PALOMAT® AMR is designed to work with different mobile robots, also called underriders. We collaborate with leading mobile robot manufacturers, including MiR, SAFELOG, Robotize, KUKA and Lowpad, to create solutions for automated empty pallet handling.
PALOMAT® AMR can be tailored to your mobile robot and communicates with the robot via an interface, enabling automatic stacking and destacking of empty pallets.
Want to know if PALOMAT® AMR can work with your mobile robot?
– and we’ll help you find the right solution.
-
PALOMAT® AGV is designed for driverless forklifts, where the pallet is transported on the robot’s forks.
PALOMAT® AMR is designed for mobile robots and underriders, where the pallet is transported on top of the robot.
– and we’ll help you choose between PALOMAT® AGV and PALOMAT® AMR.
-
PALOMAT® AMR works together with mobile robots, also called underriders, to automate pallet handling. It automatically stacks and destacks pallets onto the mobile robot, creating a continuous pallet flow and reducing the need for manual pallet handling.
Want to know if PALOMAT® AMR can work with your mobile robot?
– and we’ll help you find the right solution.
