Efficient pallet handling in cooperation with driverless forklift trucks

PALOMAT® AGV

The future calls for automation, and with PALOMAT® AGV you are guaranteed a strong position when it comes to a more streamlined production and workflow.

PALOMAT® AGV automatically stacks and destacks empty pallets individually at floor level. When the PALOMAT is empty or full, it signals the AGV which will automatically ensure that the pallet magazine is filled or emptied

Request quote

Get more information about PALOMAT® AGV

Datasheet (PDF)

AC operated

Cooperates with

driverless forklift trucks

Lifting capacity
15 pallets/500 kg

24/7-365

Technical support

How PALOMAT® AGV works

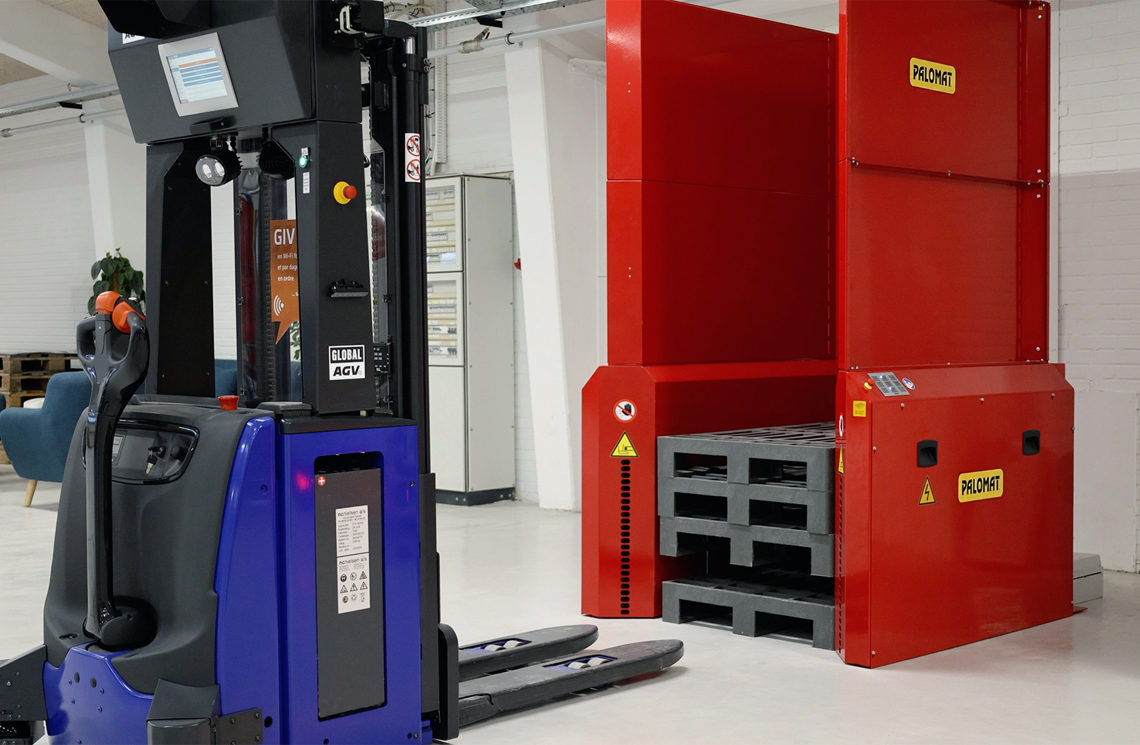

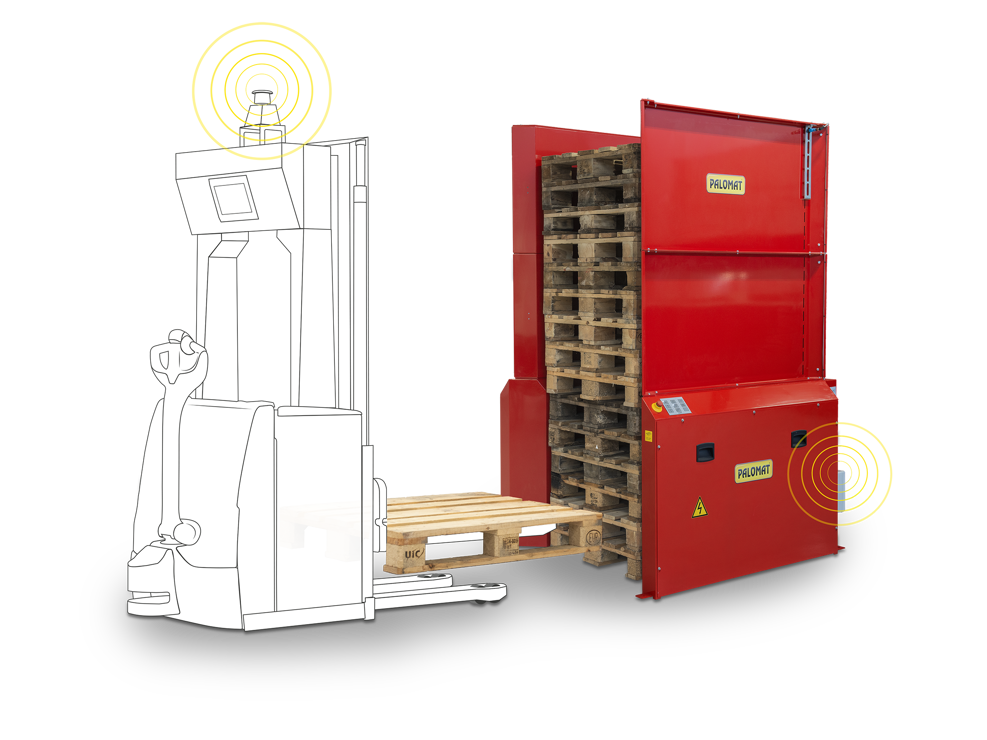

PALOMAT® AGVis equipped with an interface for external equipment, making it the perfect partner for your driverless forklift truck – together, they will make the pallet flow completely automated and efficient. The interface allows them to exchange signals and communicate independently to maintain a constant pallet flow to and from the production line, thereby improving your internal logistics.



  • PALOMAT® AGV automatically stacks and destacks empty pallets individually at floor level
  • When the PALOMAT is empty or full, it signals the AGV which will automatically ensure that the pallet magazine is filled or emptied
  • It also ensures uniform docking and thus optimises the entire workflow of the driverless forklift truck



PALOMAT® AGV can handle all 4-way pallets in wood, plastic and metal which vary in length, width, and height. We can customise the PALOMAT® AGV to fit your pallet.



For more information about PALOMAT® AGV, please contact us, we are always here to help you.



Contact us today

You must accept cookies to view the content. Click here

Why you should choose PALOMAT® AGV

  • Saves time and releases manpower for other value-adding tasks
  • Streamlines internal logistics with an efficient pallet flow
  • Improves the work environment with safe cooperation between driverless forklift trucks and your employees
  • Communicates with a wide range of driverless forklift trucks





Get a offer





  • Eliminates manual pallet handling
  • Delivered with the AGV interface with 24VDC I/O signals for external equipment
  • Delivered with software (a complete program in the PLC)
  • 100% electric version
  • Easy installation with 24/7-365 technical support



PALOMAT® AGV and Global AGV under the same roof

Get a tailored solution for your project

PALOMAT® and Global AGV are both part of the BILA Group and are developed and manufactured at our headquarters in Mors. That's why we are experts when it comes to creating a tailored solution for your project. Alongside Global AGV, we have years of experience integrating PALOMAT® AGV into a flow with automated guided vehicles (AGVs). PALOMAT® AGV integrates seamlessly with Global AGV and all other AGVs. Get inspired and learn more about Global AGV here.



Specifications

  •

    Capacity 500 kg
    Power source 220-240VAC 50 Hz 1P+N+NP
    Standby Consumption 23 W
    Consumption during operation 550 W (at max. load of 500 kg)
    Noise Level 70db(A)
    Max. Fuse 16A D01
    Actuator Linak
    Steering Siemens S7-1200





    As the PALOMAT® is equipped with various sensors, wires and pipes, cleaning must only be carried out with a weak alkaline cleaning agent. The PALOMAT® must not be flushed, but only wiped with a damp cloth.

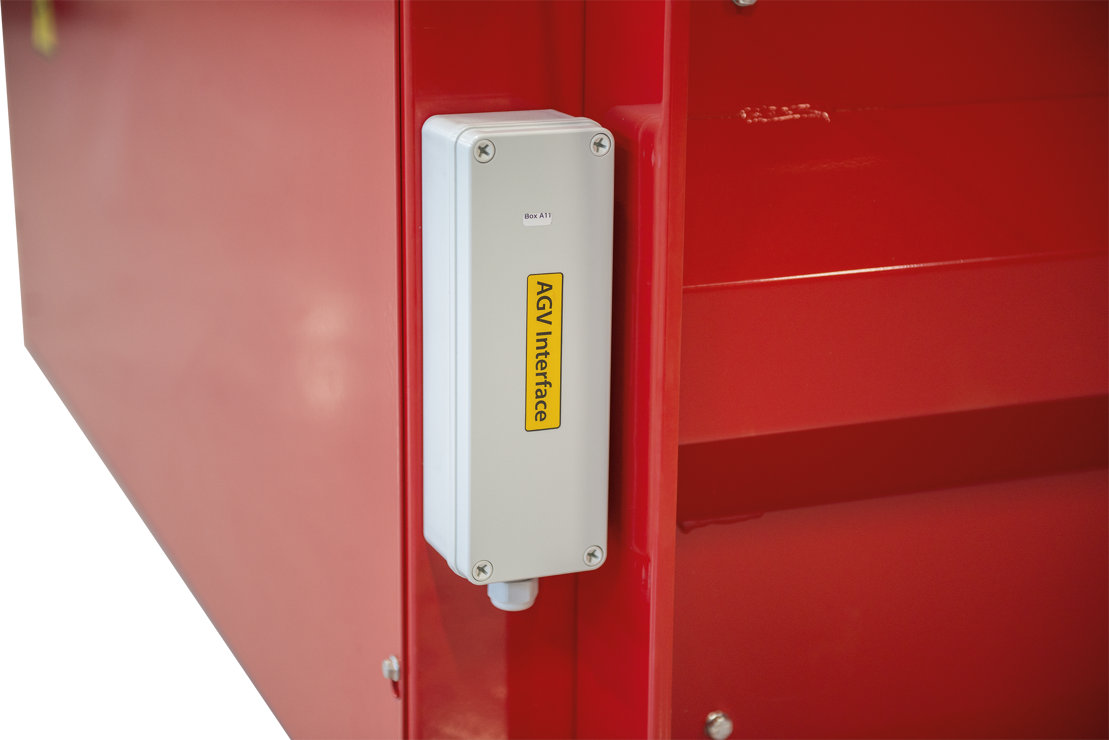

  • All models include the AGV interface with 24VDC I/O signals for external equipment, which makes it possible to exchange signals between the PALOMAT® and AGV:



    AGV Interface:

    Output fra PALOMAT® to AGV: [ Persistent indication ]

    • Signal for empty magazine (destacking)
    • Signal that a new pallet is ready to be retrieved (destacking)
    • Signal for full magazine (stacking)
    • Signal that the magazine is ready for a new pallet (stacking)
    • Error/breakdown signal



    Input from AGV to PALOMAT®: [ Pulse 3-4 sec. ]

    • Signal to choose Destacking
    • Signal to choose Stacking
    • Signal to choose Emptying

  •

    Digital outputs Relay 2A: [ Potential-free ]

    Rated value (DC): 5V DC to 30V DC

    Rated value (AC): 5V AC to 250V AC

    Digital input: [ Potentialefri ]

    Rated value (DC): 24V DC

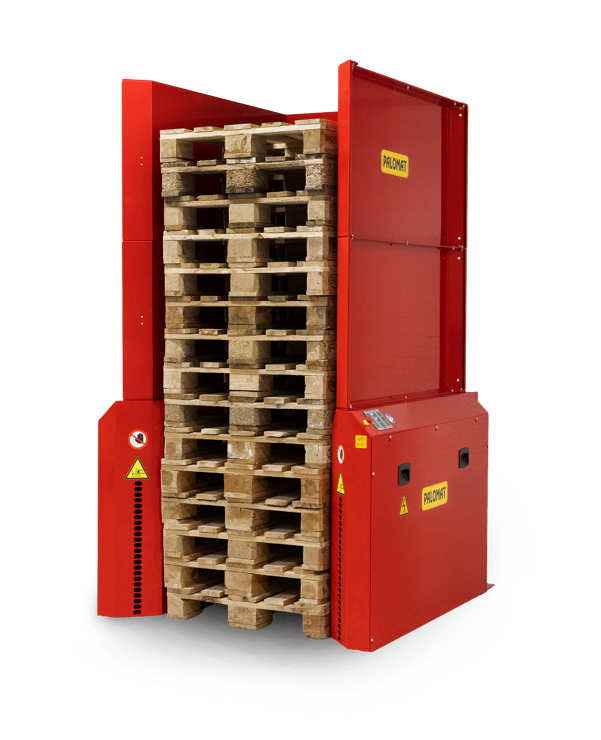

  • PALOMAT® AGV for 15 pallets



    Article No. Pallet size Lifting capacity Number of pallets
    152021* 1200x800x144 500 kg 15 pallets
    152022* 1200x1000x150 500 kg 15 pallets



    * Hardware and software prepared



    PALOMAT® AGV is delivered with software:

    Including the program in the PLC, which communicates with the interface. It is ready to communicate with driverless forklift trucks.



Possible options for your PALOMAT® AGV

Truck protection (H:300 x W:310)

The forklift truck protection is produced in 10 mm steel and can be offered as an extra protection of the front sensors.

The forklift truck protection is two separate parts, which are mounted into the floor in front of the PALOMAT®. The solution is used especially by companies, which handle pallets by forklift trucks.

Truck protection (H:1.000 x W:250)

The forklift truck protection is produced in 10 mm steel and can be offered as an extra protection of the front sensors.

The forklift truck protection is two separate parts, which are mounted into the floor in front of the PALOMAT®. The solution is used especially by companies, which handle pallets by forklift trucks.



Truck protection (H:300 x W:250)

The forklift truck protection is produced in 10 mm steel and can be offered as an extra protection of the front sensors.

The forklift truck protection is two separate parts, which are mounted into the floor in front of the PALOMAT®. The solution is used especially by companies, which handle pallets by forklift trucks.

Switch disconnector

The switch disconnector enables disconnection from the main supply right on the machine. The switch disconnector can be locked, e.g. when servicing the machine.

This is an advantage and a safety feature for maintenance of the PALOMAT® unit. The switch disconnector is positioned under the main supply.

.
