Automatic pallet magazines for production lines PRODUCTION LINES

PALOMAT® Inline

The pallet magazine, which is constructed 100% for your project, is the ideal component for stacking and destacking empty pallets in production lines

Are you ready to save time and money on the design and production of pallet magazines for your palletising projects? Then outsource with PALOMAT® Inline!

100% customised to your project

You save time on development, design, and production

Flexible and thoroughly tested product

Over 30 years of experinece

Why you should choose PALOMAT® Inline

PALOMAT® Inline pallet magazine is the ideal component for stacking and destacking empty pallets in production lines.



  • 100% customised to your project
  • Regardless of conveyor type, 4-way pallet type and pallet direction, PALOMAT® Inline is suitable for your project
  • PALOMAT® Inline is equipped with a terminal box for external control
  • Complies with the current machinery directive
  • Easily integrated into the complete system



With our automatic standard product, you achieve an efficient, reliable, and economical production line while improving your project’s bottom line. Get one step closer to automated pallet handling. Outsource your next pallet magazine to the expert: PALOMAT®.



Get a offer!


A win for your business

  • Save time on development, design, and production
  • Save time on commissioning and testing – and preparing documentation
  • 100% customised to your pallet and your palletising project
  • Minimise the risk of errors and omissions. You get a complete, flexible, and proven standard product
  • Easy to integrate into a complete system





Send your enquiry



  • Prepared for PLC – supplied with a terminal box for external control
  • You will receive drawings of the PALOMAT® for your own layout (DWG/STEP)
  • You receive technical documentation in your customers' languages
  • A quality product at a competitive price
  • Technical support – 24/7/365, with more than 30 years of experience
Video

PALOMAT® Inline Automation solutions

PALOMAT®

The market's preferred supplier of pallet magazines

PALOMAT® Inline

100% customised to your project

Specifications

  • PALOMAT Inline



    Electrical data
    Type Funktion Psc. I/O Power Consumption Power Consumption per unit
    Sick - VTE18-3F4712 Photoelectric sensor 2 2 input 30mA - 0,72W 60mA - 1,44W
    Smc - D-A93L Reed switch(Top and bottom) - Lifting cylinder (2x2 in serie) 4 2 input 20mA - 0,48W 80mA - 1,92W
    Smc - D-A93L Reed switch (Middle) - Lifting cylinder 2 2 input 20mA - 0,48W 40mA - 0,96W
    Smc - D-C73L Reed switch - Gripping cylinder (2x2 in serie) 4 2 input 20mA - 0,48W 80mA - 1,92W
    Smc - Solenoid Solenoid for lifting 4 4 input 17mA - 0,40W 67mA - 0,80W
    Smc - Solenoid Solenoid for gripping 2 2 input 17mA - 0,40W 34mA - 0,80W


    Max power consumption at 24V DC: 361mA - 8,66W





    Pneumatic data

    Air quality:

    Compressed air quality after ISO 8573-1 (3.4.3)


    Class



    Particles

    Max. µm

    Particles

    Max. mg/m3

    Water Content

    PDP ℃*

    Water Content

    g/m3**

    Residal Oil

    mg/m3

    1 0,1 0,1 -70 0,003 0,01
    2 1 1 -40 0,15 0,1
    3 5 5 -20 0,88 1
    4 15 8 +3 6 5
    5 40 10 +7 7,8 25
    6     +10 9,4



    *PDP = Pressure Dew Point = the temperature below which the compressed air is to be cooled before its harmful water vapour content will condense and be transformed into a liquid and harmful form.
    ** m³ compressed air





    Air consumption for one PALOMAT® Inline unit:



    Working pressure: 6-7 bar
    Minimum air flow: 55L/cycle

    Cycle time:

    For stacking and destacking a pallet: 15 sekunder

    IP Class= 64

  • PALOMAT® Inline videos



    Watch videos















Pictures of PALOMAT® Inline



Pallet magazines in various models and production lines

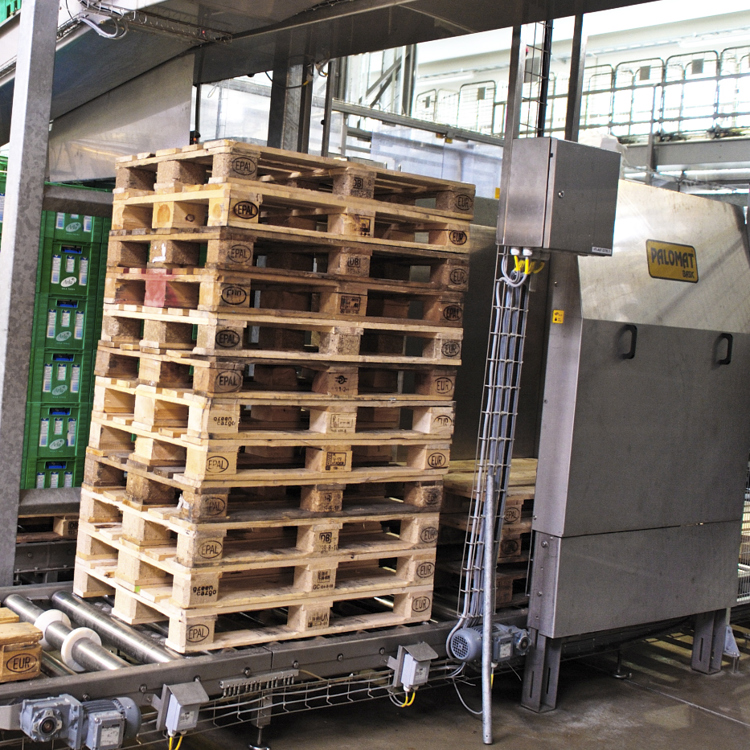

Pallet magazin PALOMAT® Inline in stainless steel for stacking and destacking empty pallets in a production line



Pallet magazin PALOMAT® Inline handles empty pallets in a production line

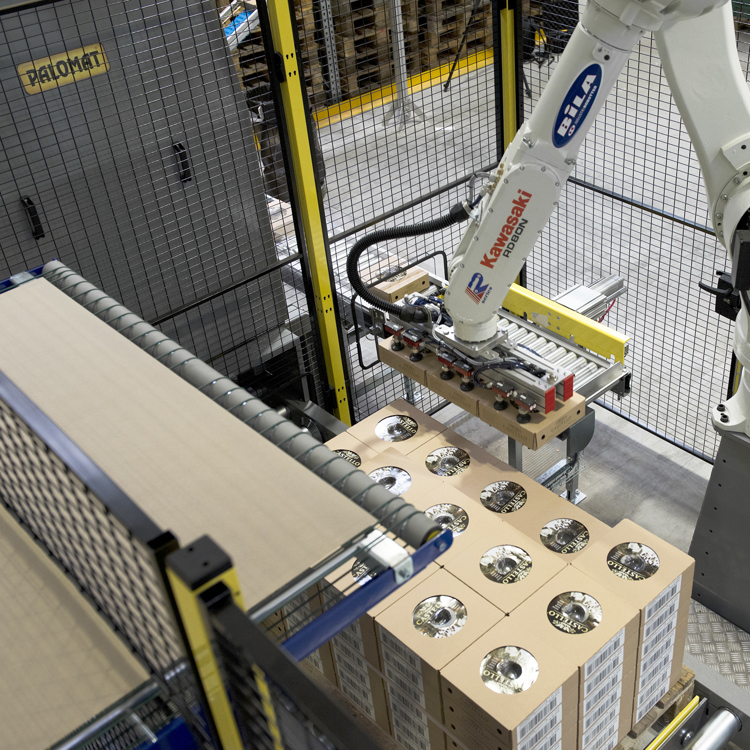

Pallet magazin PALOMAT® Inline integrated into a production line

Pallet magazin PALOMAT® Inline where an AGV is handling the loading and onloading of empty pallets

Pallet magazin PALOMAT® Inline in stainless steel as a part of a production line



Pallet magazin PALOMAT® Inline handles plastic pallets in a production line



Pallet magazin PALOMAT® Inline with an adjustable side - which makes it possible to handle different pallet sizes in the same pallet magazine
